Garmin GI 275 AI/ADI

Garmin Attitude Indicator

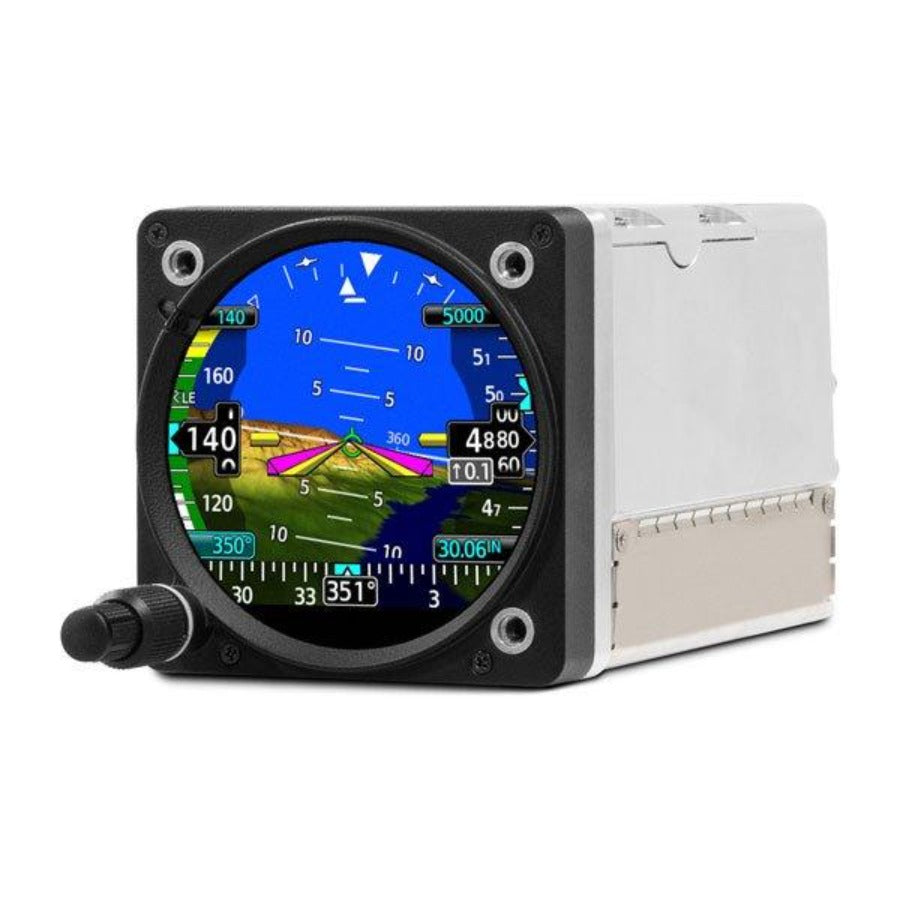

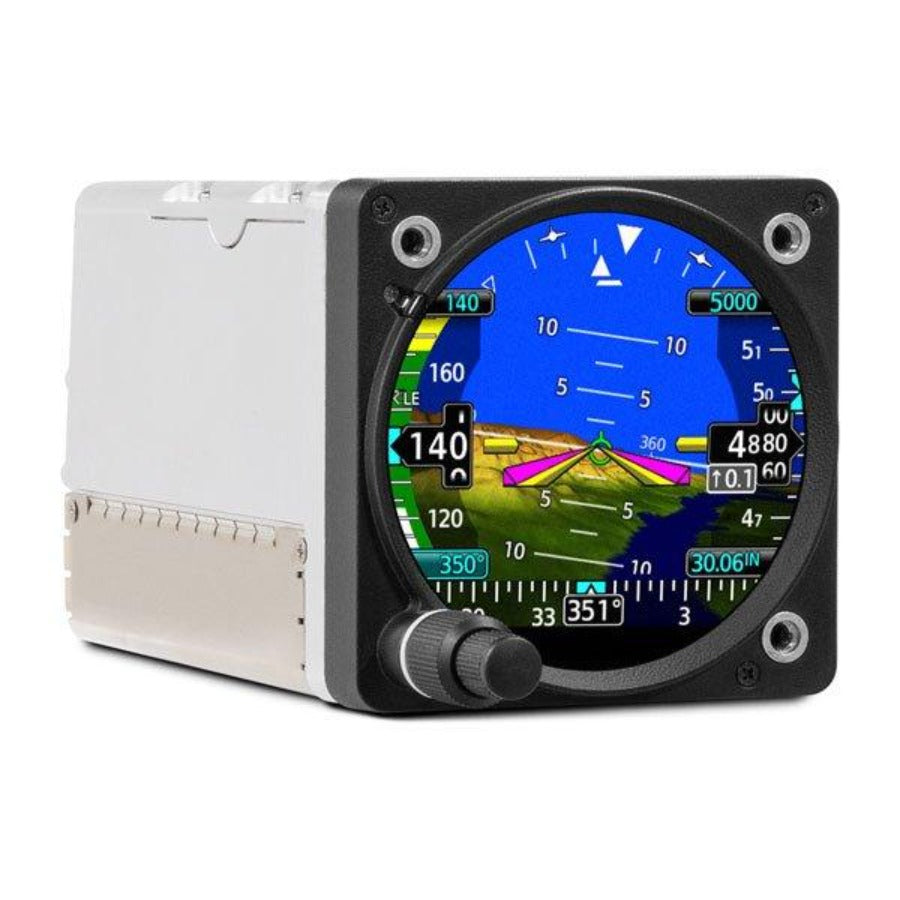

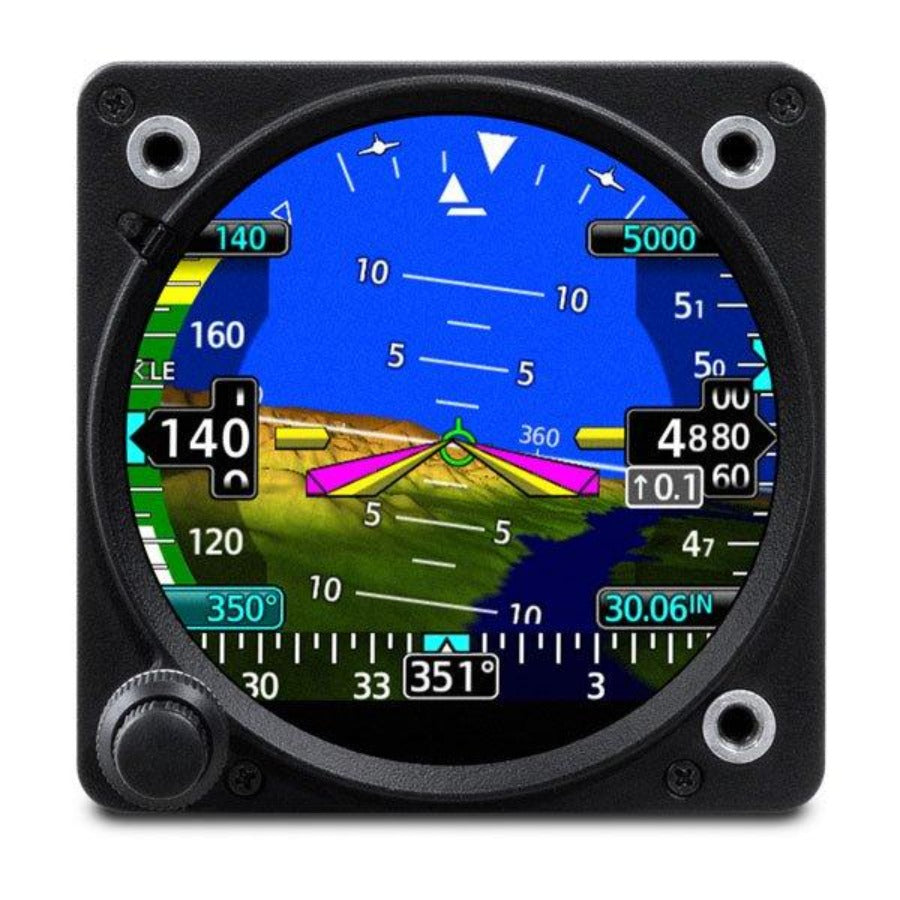

Adaptable to a full range of instrument formats and functions, our GI 275 electronic display lets you keep the classic look of your panel while upgrading with modern, reliable glass touchscreen display technology.

Garmin 275 In Stock

When installed as a primary attitude indicator, GI 275 offers improved reliability, potential weight savings and reduced maintenance compared to vacuum-driven attitude indicators. In addition to serving as primary for attitude information, pilots can also view primary altitude, airspeed and heading information on the instrument. Optional SVT™ overlays a rich, 3D topographic view of terrain, traffic, obstacles, airport sign posts and more all within the GI 275 attitude display. With SVT, the GI 275 also displays a flight path marker, which considers crosswind, angle of attack and other factors to show precisely where the aircraft is flying. GI 275 is compatible with the GFC™ 600 autopilot — as well as an array of thirdparty autopilots — and can replace the primary attitude indicator installed with these autopilots. GFC 500 compatibility is expected later this year.



• Width: 3.25" (82.6 mm)

• Height: 3.25" (82.6 mm)

• Depth: 6.44" (163.6 mm)

• Depth with Connector: 7.40" (188.0 mm)

• Unit Weight: 1.9 lbs (0.86 kg) to 2.4 lbs (1.1 kg)

• Active Display Size: 2.69” diameter

• Display Resolution: 480 x 433 pixels

• Operating Voltage: 14/28 VDC

• Operating Temperature Range: -20°C to +55°C

• Altitude Range: -1,500 ft to 55,000 ft

• Wi-Fi Class: 802.11b/g/n

Garmin products have been designed for compatibility with a wide range of avionics. To confirm compatibility of Garmin equipment with your specific aircraft make/model and current avionics configuration, please consult your Authorized Garmin Dealer.

Interface	Manufacturer	Model	Notes/Info
Autopilot	View Detailed Autopilot Compatibility
GPS Source	Garmin	Internal VFR GPS
		GNS 430W/530W Series
		GNS 480
		GTN 650/750 Series
		GTN 650Xi/750Xi Series
		GTX 335/345	Requires Integrated GPS Variant
		GPS 175/GNC 355/GNX 375
Database Updating	Garmin	GSB 15
		Garmin Pilot App
Navigation Receiver	Garmin	GNC 255
		GNS 430W/430AW GNS 530W/530AW
		GNS 480 (CNX80)
		GTN 650/750
		GTN 650Xi/750Xi
		SL 30
	Collins	VIR-32/33
	Honeywell (Bendix/King)	KX 155/155A/165/165A
		KN 53
		KX 170B/175B
Radar Altimeter	Garmin	GRA 55/5500
	Collins	RAC-870
	FreeFlight	RA-4500
	Honeywell (Bendix/King)	KRA 405B
Traffic Source	Garmin	GTS 800/820/825/ 850/855
		GTX 33/330/335	TIS-A Only
		GTX 345
		GNX 375
	Avidyne (Ryan)	TAS 6XX/TCAD
	Honeywell (Bendix/King)	KTA870/KMH820
		KTA970/KMH920
	L-3 Communications (Goodrich)	SKY497
		SKY899
Weather Source	Garmin	GDL 69A	GTN Series, GTN Xi series or TXi Series must also be connected
		GTX 345
		GNX 375
	L-3 Communications	WX-500 Stormscope	GTN Series, GTN Xi series or TXi Series must also be connected
