GARMIN

Garmin GI 275 CDI

Part No: 010-02325-00

$3,295.00
Shipping calculated at checkout.
Sizing guide

Pickup available at 3650 Drane Field Rd

Usually ready in 24 hours

DESCRIPTION

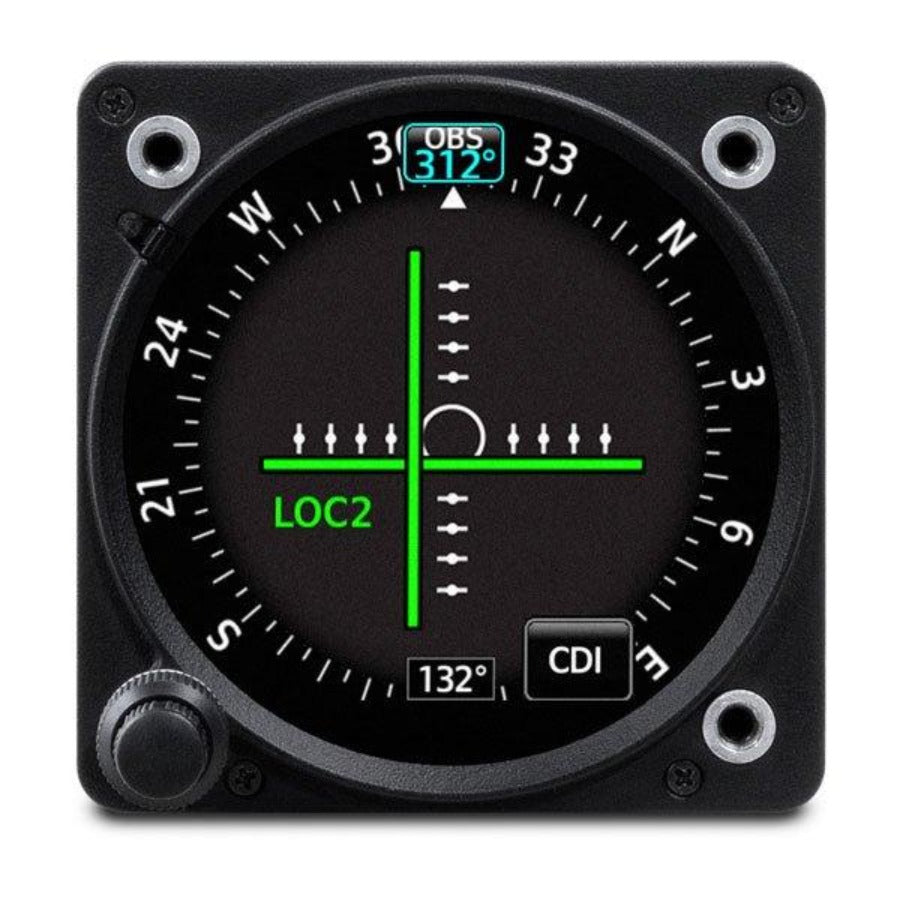

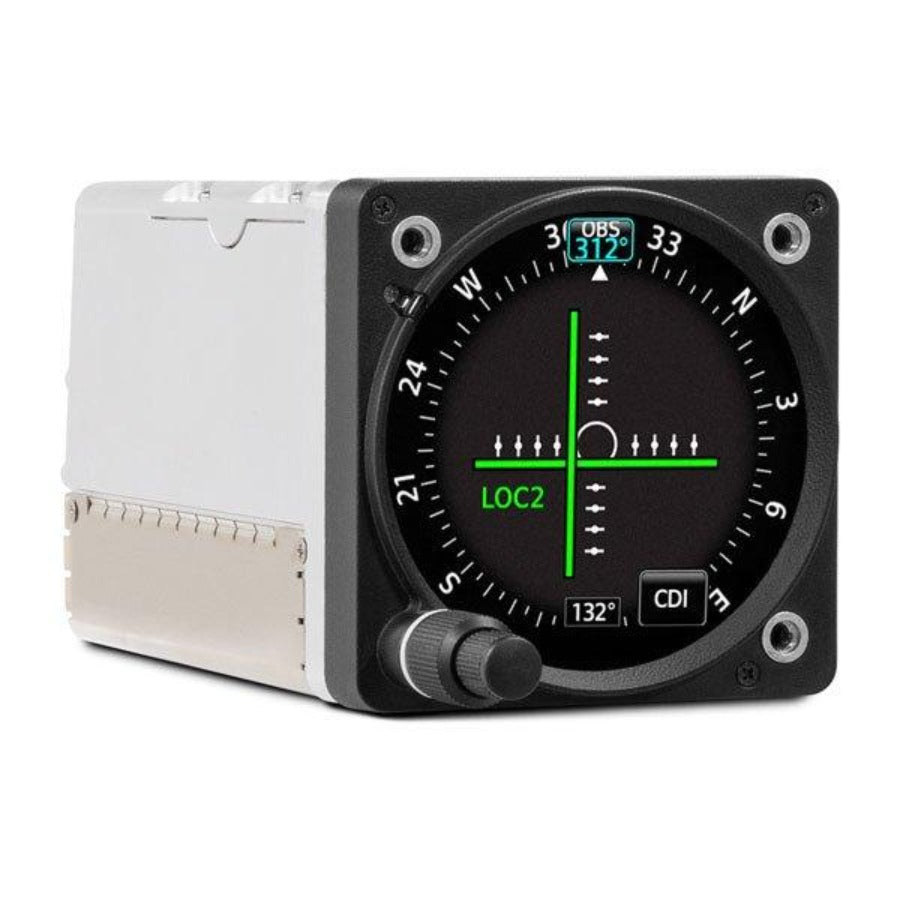

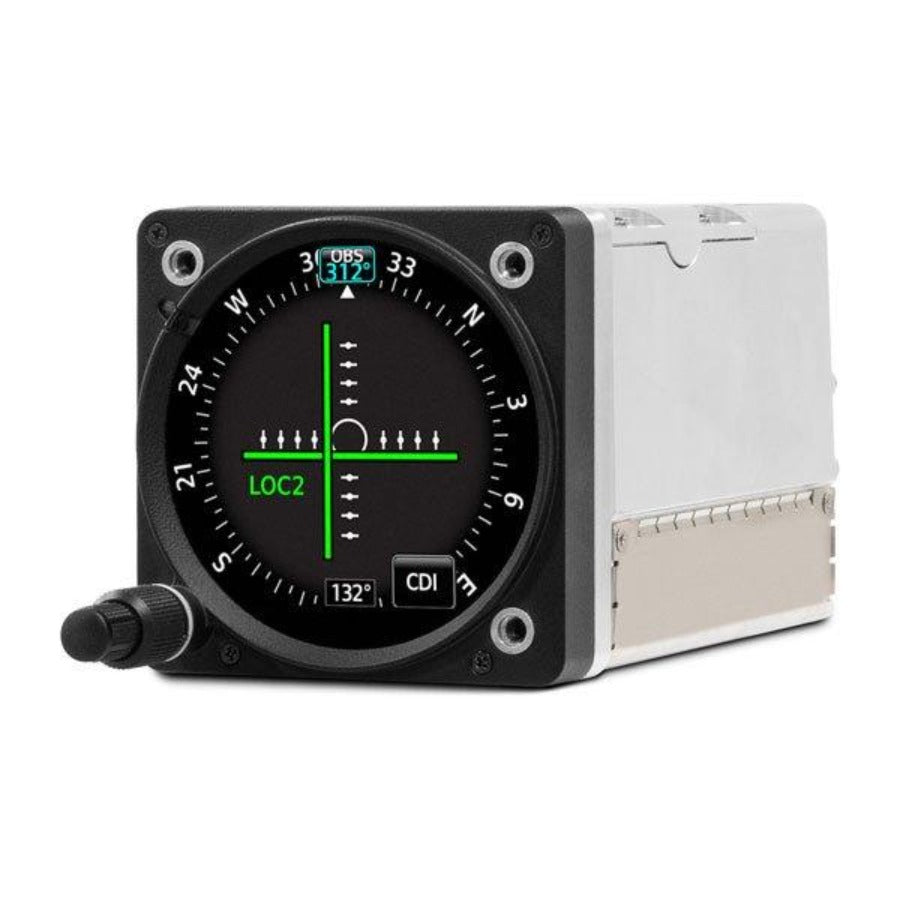

Garmin Course Deviation Indicator

Adaptable to a full range of instrument formats and functions, our GI 275 electronic display lets you keep the classic look of your panel while upgrading with modern, reliable glass touchscreen display technology.

When installed as a CDI, the GI 275 flight instrument is designed to accept a variety of GPS or navigation inputs, allowing up to two GPS sources and two VHF navigation sources. The GI 275 features an Omni Bearing Resolver that allows the flight instrument to interface to a variety of legacy navigation sources without the need for an expensive adapter. Vertical and lateral GPS, VOR/LOC and glideslope deviation can be viewed on the GI 275. CDI source selection can be accomplished through the touchscreen interface, while course and heading selection is completed by using either the touchscreen or dual concentric knob. When pilots replace an older mechanical CDI, GI 275 doubles as a modern digital indicator and adds MFD-like capabilities such as a moving map, weather, traffic and terrain.



Features
  • 3.125" Round Multifunction Instrument
  • Attitude Indicator, HSI, CDI, MFD, EIS, Standby Capability
  • Touchscreen Display with Dual Concentric Knobs
  • Compatible with Garmin and 3rd Party Autopilots
  • Built-in Wireless Connectivity (WiFi & Bluetooth)
  • Available with 60-minute backup battery
  • Approved for Installation in over 1000 Part 23 Class I/II/III & Class III Part 25 aircraft
  • Attitude Indicator can be primary source for attitude, turn coordination, altitude, airspeed
  • Integrated solid-state ADAHRS version available
  • Optional Synthetic Vision Technology
  • HSI version replaces primary HSI; supports digital & analog navigation receivers
  • HSI Map capability adds dynamic map with overlays for flight plan, terrain, traffic, weather and more
  • Built-in VFR GPS (requires GPS antenna)
  • Automatic Reversionary Capability for seamless reversionary mode with dual GI-275 installations
  • Integrated solid-state ADAHRS version available
  • Radar Altimeter Display
  • CDI supports digital & analog navigation receivers; up to 2 GPS sources, 2 nav sources; compatible with select 3rd party nav sources
  • Standby display integrates with TXi displays, G500/600, G1000/NXi, 3rd party mechanical & EFIS displays
  • Primary Engine Indication System supports single/twin piston aircraft; engine, fuel, eletrical data, fuel computer
  • EIS version provides engine data logging and exporting to Garmin Pilot
  • Updating available via GSB-15
  • ADAHRS + AP version adds interface capability to many popular legacy autopilot systems; Software level Class B/C
Specifications
  • Width: 3.25" (82.6 mm)
  • Height: 3.25" (82.6 mm)
  • Depth: 6.44" (163.6 mm)

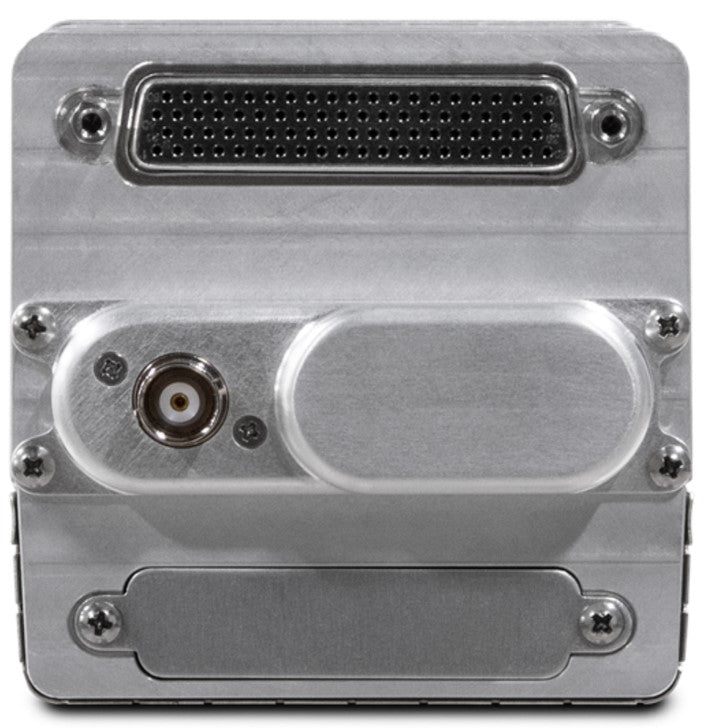

  • Depth with Connector: 7.40" (188.0 mm)
  • Unit Weight: 1.9 lbs (0.86 kg) to 2.4 lbs (1.1 kg)
  • Active Display Size: 2.69” diameter
  • Display Resolution: 480 x 433 pixels
  • Operating Voltage: 14/28 VDC
  • Operating Temperature Range: -20°C to +55°C
  • Altitude Range: -1,500 ft to 55,000 ft
  • Wi-Fi Class: 802.11b/g/nz

Garmin products have been designed for compatibility with a wide range of avionics. To confirm compatibility of Garmin equipment with your specific aircraft make/model and current avionics configuration, please consult your Authorized Garmin Dealer.

Interface

Manufacturer

Model

Notes/Info

Autopilot

View Detailed Autopilot Compatibility

GPS Source

Garmin

Internal VFR GPS



GNS 430W/530W Series



GNS 480



GTN 650/750 Series



GTN 650Xi/750Xi Series



GTX 335/345

Requires Integrated GPS Variant

GPS 175/GNC 355/GNX 375



Database Updating

Garmin

GSB 15



Garmin Pilot App



Navigation Receiver

Garmin

GNC 255



GNS 430W/430AW

GNS 530W/530AW



GNS 480 (CNX80)



GTN 650/750



GTN 650Xi/750Xi



SL 30



Collins

VIR-32/33



Honeywell (Bendix/King)

KX 155/155A/165/165A



KN 53



KX 170B/175B



Radar Altimeter

Garmin

GRA 55/5500



Collins

RAC-870



FreeFlight

RA-4500



Honeywell (Bendix/King)

KRA 405B



Traffic Source

Garmin

GTS 800/820/825/

850/855



GTX 33/330/335

TIS-A Only

GTX 345



GNX 375



Avidyne (Ryan)

TAS 6XX/TCAD



Honeywell

(Bendix/King)

KTA870/KMH820



KTA970/KMH920



L-3 Communications

(Goodrich)

SKY497



SKY899



Weather Source

Garmin

GDL 69A

GTN Series, GTN Xi series or TXi Series must also be connected

GTX 345



GNX 375



L-3 Communications

WX-500 Stormscope

GTN Series, GTN Xi series or TXi Series must also be connected
