Traffic Avoidance System

**From $13,495 installed.
This unit must be installed by Gulf Coast Avionics.

Catalog No:

Manufacturer: GARMIN

In busy, high-density airspace, pilots are challenged to "see and avoid" other aircraft that may be climbing, descending, or cruising in their vicinity. Alertness and vigilance are critical. But for added protection, nothing beats Garmin's GTS™ family of ADS-B enhanced Traffic Advisory (TAS) and Traffic Collision Avoidance (TCAS I) Systems. Featuring exclusive Garmin CLEAR CAS™ technology, these innovative systems provide accurate, dynamic traffic surveillance – with ATC-like spoken audio alerts to help you quickly respond to potential flight path encroachments.

Life-Saving Technology at a Money-Saving Price

Feature-rich yet affordably priced, the Garmin GTS 800 system is designed to bring full TAS traffic surveillance capability well within reach of most GA pilots and their budgets. It offers power, range and performance comparable to systems costing far more. And like all Garmin GTS units, it will operate to 55,000 feet – so it's not constrained by the much lower altitude limits imposed on some competitive traffic alerting systems.

Better Surveillance Equals Faster Response

Augmenting reports from radar-based air traffic control, the GTS 800 can combine both active and passive surveillance technologies (including 1090 MHz ADS-B "In") when installed with a compatible "extended squitter" Mode-S transponder such as Garmin's GTX 330 ES unit (sold separately). Using this hybrid active/passive surveillance, the GTS 800 creates a 360° zone of detection around the aircraft – enabling you to see and identify other nearby transponder-equipped aircraft in time to take prompt corrective action.

Targets are displayed using familiar TCAS-defined symbology. And the enhanced surveillance provided with ADS-B "Out" and "In" capability enables all "participants" in the ADS-B NextGen system to broadcast and receive accurately correlated traffic position data automatically. Thus, instead of just seeing random targets on a display, pilots can now identify and track specific intruder movements with much greater precision. So, in busy airspace, they're able to fly with a much clearer tactical picture of their immediate traffic situation.

It Sees More. So You Worry Less

The GTS 800 can track up to 60 traffic targets simultaneously – and depict up to 30 intruder threats at a time, depending on the display being utilized. Offering 40 watts of transmit power, a +/- 10,000-foot vertical separation maximum, and a typical active interrogation range of 12 nm in the forward direction, the GTS 800 system will interface with a variety of compatible system displays in the cockpit. So it doesn't require added panel space for a dedicated control/display.

Voice Alerting Helps Keep Heads Up, Eyes Out

Instead of the generic "Traffic, traffic" voice alerts of some earlier-generation systems, the GTS 800's exclusive CLEAR CAS technology provides for expanded audio messaging in an ATC-like verbal format: "Traffic. One o'clock. High (or Low or Same Altitude). Two miles." If surveillance bearing information is not available on the intruder, "Traffic, No Bearing" is called out.

By vocalizing more specific traffic -spotting information, pilots know instantly where to look without going "eyes-down" to locate the intruder target on the cockpit display. Obviously, this can save vital split-seconds in a fast-converging traffic situation.

Antenna Options to Optimize Performance

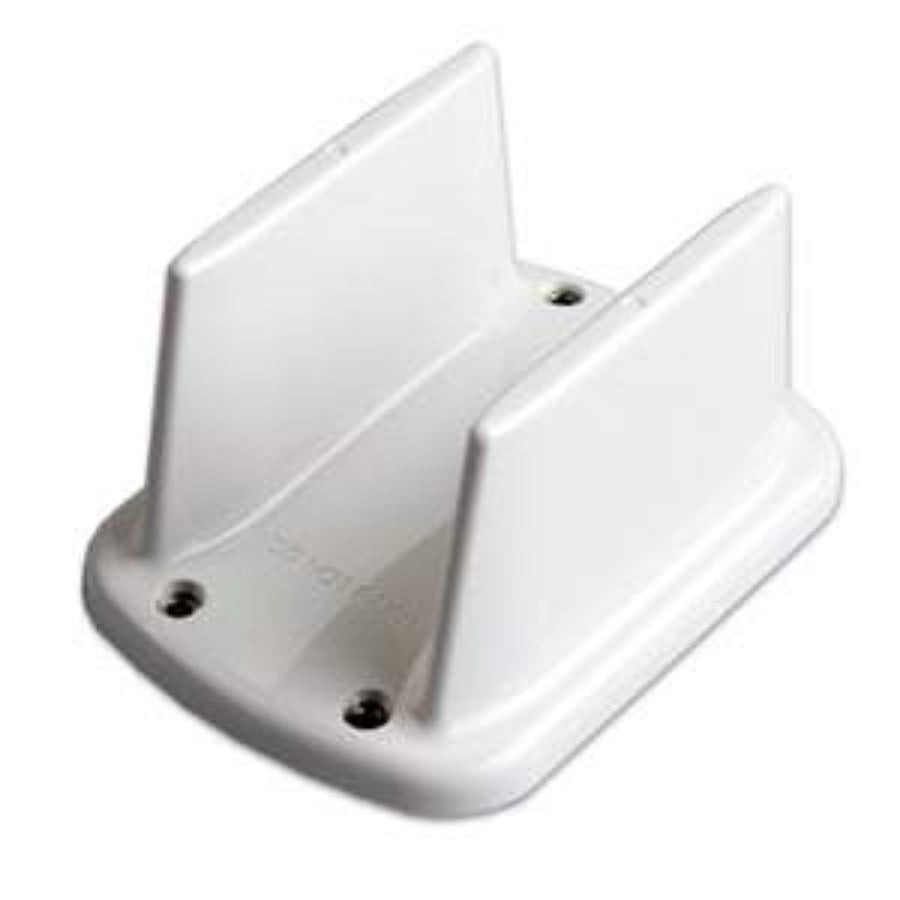

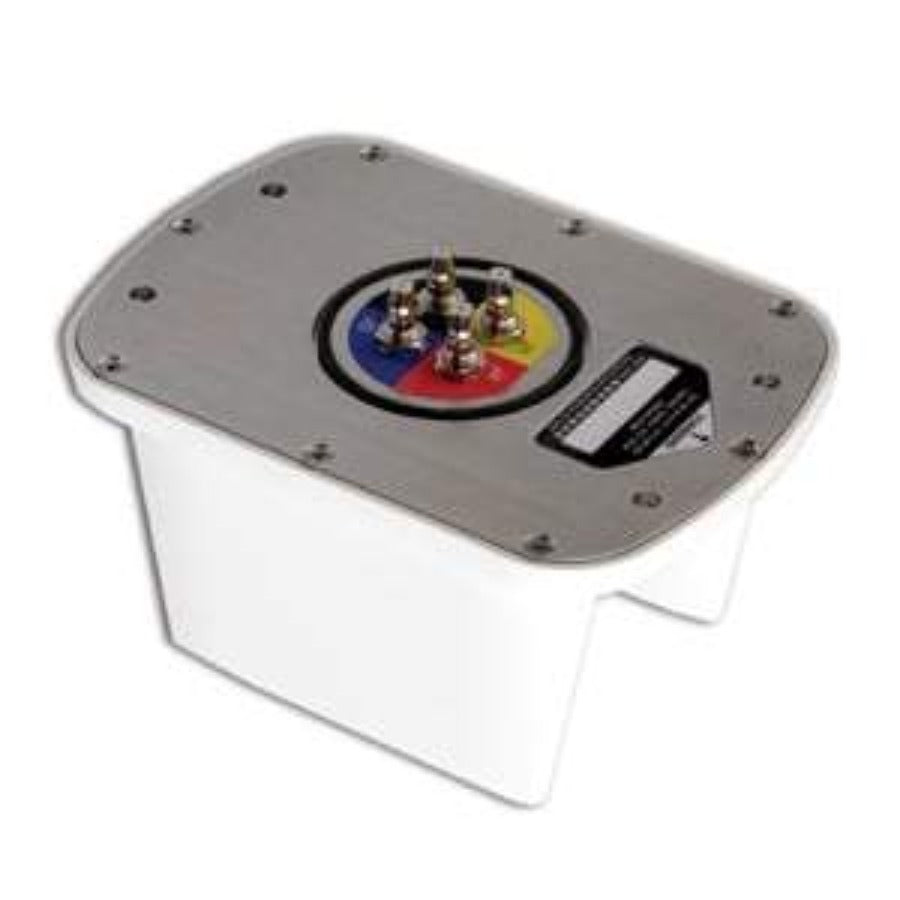

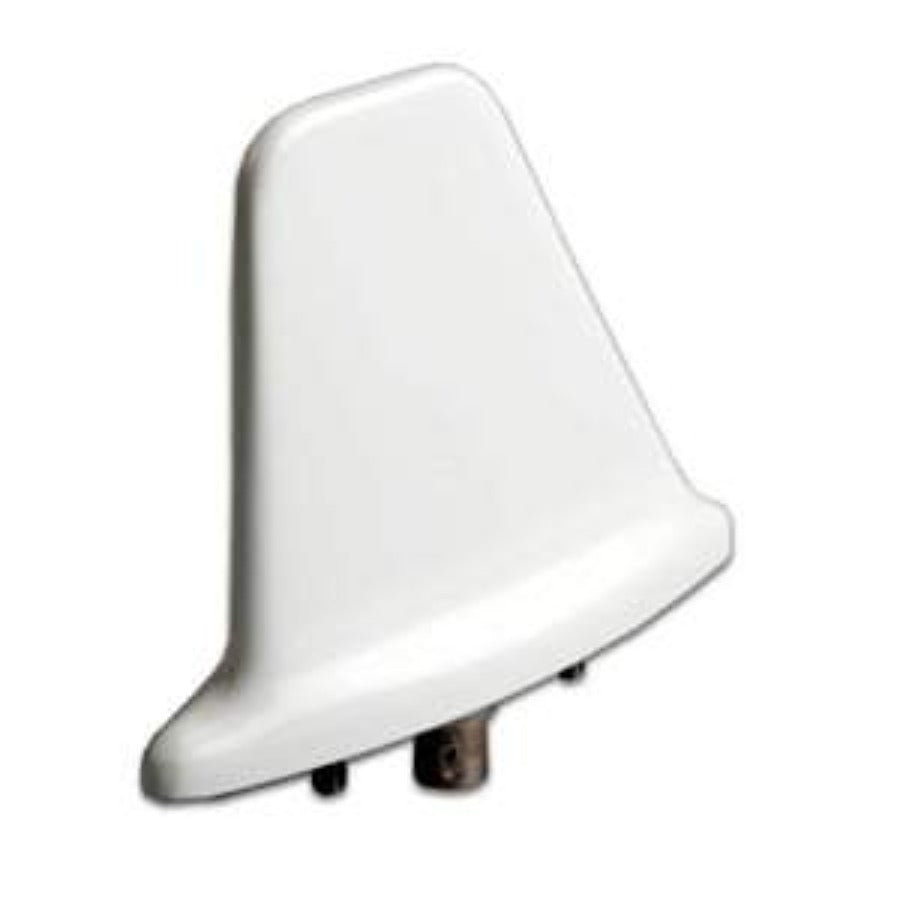

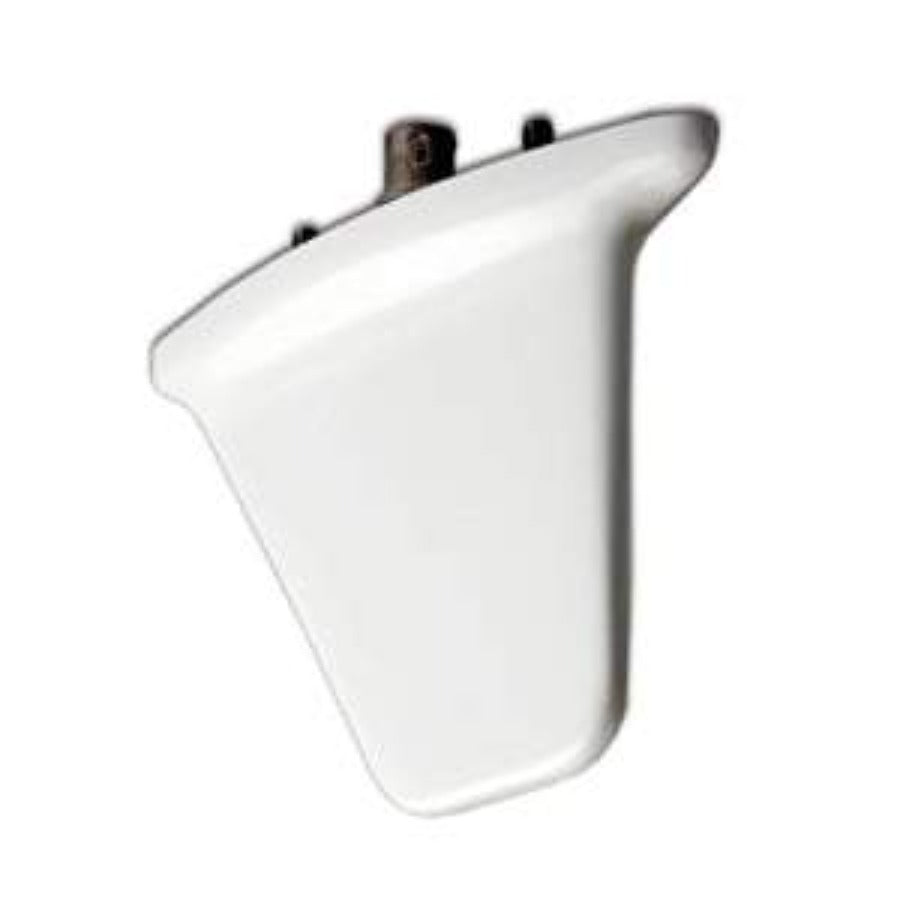

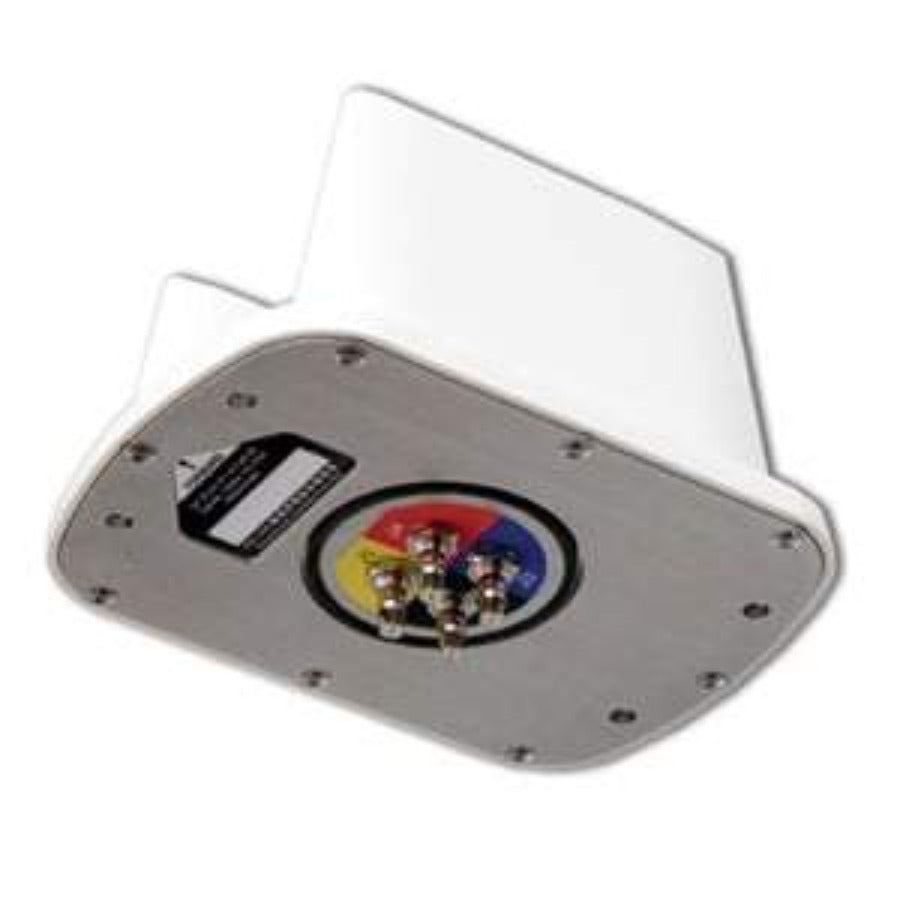

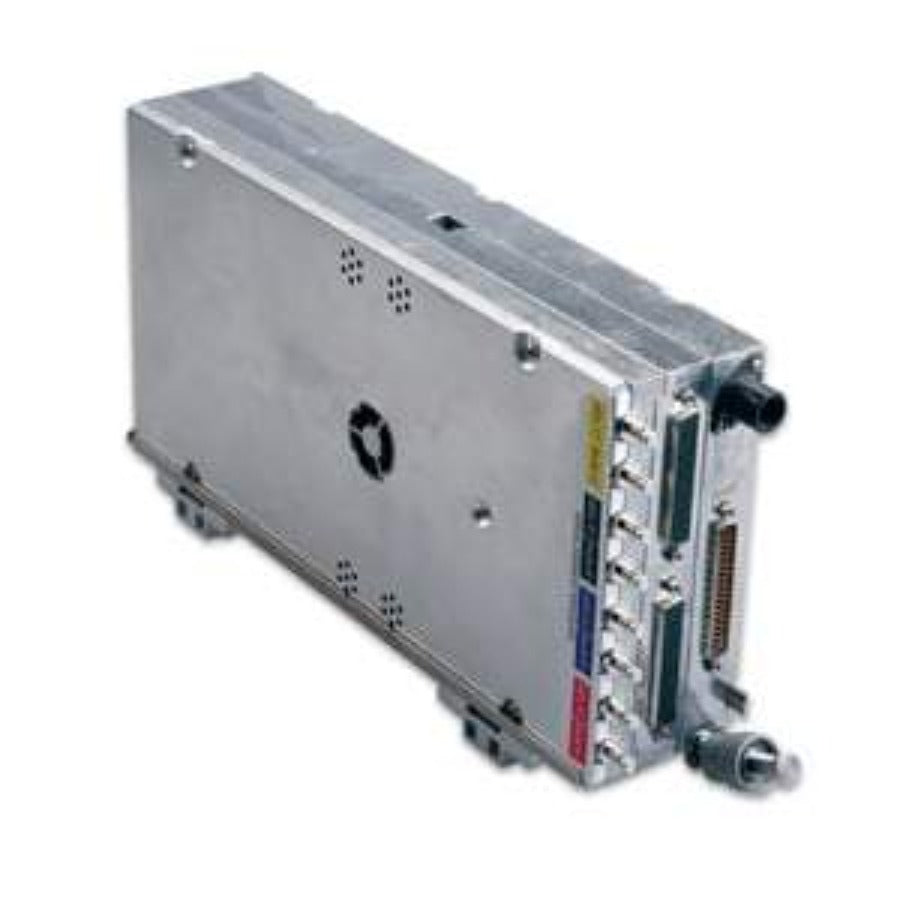

As a value-priced TAS system, the GTS 800 offers performance, utility, and installation flexibility that's ideally scaled for most single-engine piston aircraft. In addition to the basic TAS remote transmitter/receiver/computer LRU, GTS 800 comes standard with a single top-mounted directional antenna. Bottom-mount directional or omni antennas are also available as an extra-cost option to help optimize coverage and prevent target drop out during turns and maneuvers. See your Garmin dealer for full installation details.

GTS 800 TAS Features at a Glance:

  • Choice of 12 nm or 40 nm forward-looking coverage
  • Generates both aural and visual traffic advisories
  • Expanded aural alerts can specify relative target bearing, relative altitude (above/below) and range
  • Active and passive (ADS-B) surveillance technologies
  • Tracks up to 60 traffic targets simultaneously
  • Displays up to 30 intruder threats
  • Selectable horizontal display ranges
  • ±10,000 ft. max. relative altitude reference
  • Uses TCAS-like symbology
  • Interfaces with a variety of compatible MFDs and cockpit displays (not included)
  • Selective/directional interrogation reduces frequency congestion
  • High-Speed Data Bus (HSDB) or ARINC 429 interface capabilities
  • Vertical or horizontal LRU rack mounting
  • 14/28 VDC power capability

The installed price above includes two GA 58 Directional Antennas and gives the best traffic coverage possible. Install pricing may be lower if the aircraft is a light single, fixed gear aircraft or can use one of the other antenna options available.

Garmin GTS 800 TAS: It's the affordable choice for serious traffic surveillance.
