H69-1 Dual NAV/GS Quadraplexer Antenna Coupler | BNC Connectors
Part No:
$424.00
/
Shipping calculated at checkout.
DESCRIPTION
H69-1 Dual NAV/GS Quadraplexer Antenna Coupler | BNC Connectors

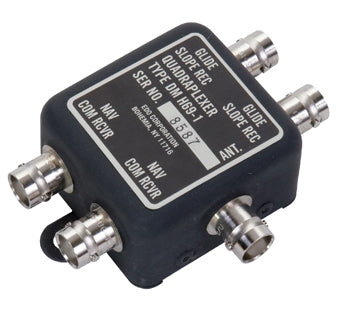

The DM H69-1 quadraplexer antenna coupler provides the ability to operate dual NAVS and dual glide slope receivers from one VOR antenna. This lightweight and compact unit is design to couple multiple systems to a single antenna with minimal insertion loss and signal isolation to prevent intersystem crosstalk.
Features
- Allows operation of dual NAVS and dual GS receivers from one VOR antenna
- Lightweight and compact design
- Reduced insertion loss and provides signal isolation
Specifications
Weight:
4 oz
Connector:
BNC male
Frequency Range:
108 MHz – 118 MHz
329 MHz – 335.3 MHz
VSWR:
2.0:1
Impedance:
50Ω
Isolation:
VOR: 18 dB, min
VOR-GS: 20 dB, min
GS-GS: 18 dB, min
Insertion Loss:
VOR: 1 dB, max
GS: 1 dB, max
Power Handling:
Receive only
Environmental:
MIL-E-5400
CLASS II
Vibration 1A
