ICOM

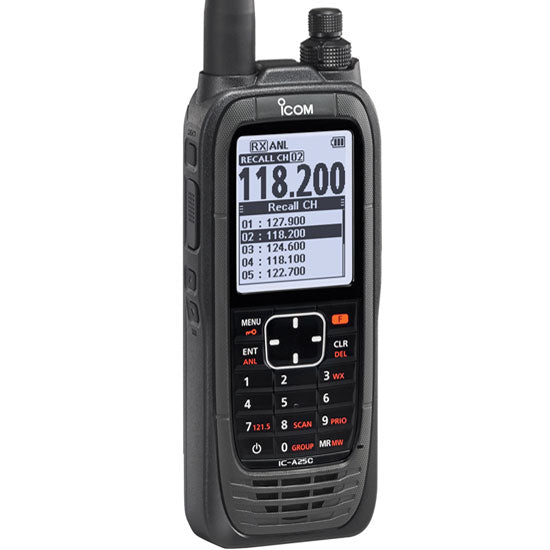

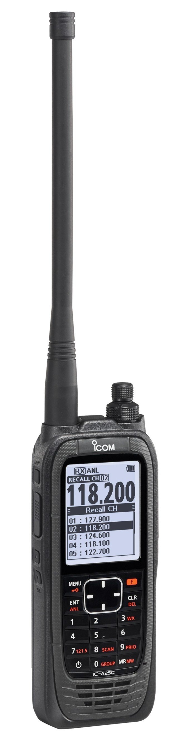

IC-A25C Series Handheld Com Radio
Part No: IC-A25C-SPORT
Pickup available at 3650 Drane Field Rd
Usually ready in 24 hours
DESCRIPTION
The A25 series is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The handheld includes a large 2350mAh Li-ion battery, providing a long operating time. The easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation.
The A25’s large 2.3-inch LCD provide user-friendly, graphic screens. The day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark.
Features
Features
-
"Flip-flop" channel recall
-
Smart battery with detailed battery status
-
121.5MHz emergency key
-
Weather channels
-
Priority watch
-
VFO scan, memory-channel scan, priority scan
-
Navigation Functions
Built-in GPS and Bluetooth® redefined navigation in the A25N. Design flight plans with an Android™ or iOS™ device and import them into the A25 with the Bluetooth® feature. While using GPS, the waypoint NAV will guide pilots to their destination. Up to 10 flight plans and 300 waypoints can be stored in the A25. Other navigational features, like VOR indicators, can help keep a pilot’s heading precise and alert them if they divert from course. All these functions and more increase safety up in the air.
VOR navigation functions
-
- CDI (Course Deviation Indicator) looks like a real VOR instrument and displays any deviation from your course.
- OBS (Omni Bearing Selector) enables you to change course from your original flight plan.
- TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
- ABSS (Automatic Bearing Set System) enables you to set the current course as a new course.
Included (Li-Ion Version only)
-
Li-ion Battery (BP288)
-
Rapid Charger w/AC Adapter (BC244)
-
AC Adapter for Rapid Chargers (BC123SA)
-
Belt Clip (MB133)
-
Headset Adapter Cable (OPC2379)
-
Antenna A4/A5/A23/A24/A6/A14 (FAB02AR)
-
Hand strap
Includes (Alkaline Version only)
- AA Battery Pack (BP289)
- Belt Clip (MB133)
- Antenna A4/A5/A23/A24/A6/A14 (FAB02AR)
- Hand Strap
Specifications
| General | |
| COM | A25C COM channels |
| Frequency Coverage Tx Rx RX (Weather) |
A25C 118.000-136.975 MHz 118.000-136.975 MHz 161.650-163.275 MHz |
| Channel spacing | 25/8.33 kHz |
| Type of emission | 6K00A3E, 5K60A3E, 16K0G3E (Weather) |
| Power supply requirement | 7.2 V DC (BP-288), 11.0 V DC (External DC Jack) |
| Current drain (approximately) Tx High Rx Max. audio/Stand-by |
Less than 1.8 A Less than 500 mA/90 mA typ. |
| Antenna impedance | 50 Ω |
| Operating Temperature Range | –10°C to +60°C; 14°F to 140°F |
| Dimensions (W×H×D) (projections not included) |
58.9 × 148.4 × 31.8 mm; 2.3 × 5.8 × 1.3 in |
| Weight (approximately) | 340 g; 12.0 oz (with BP-288) |
| Transmitter | |
| Output power (at 7.2 V DC) | 6.0/1.8 W typical (PEP/carrier) |
| Audio harmonic distortion | Less than 10% (at 60% modulation) |
| Hum and noise ratio | More than 35 dB |
| Spurious emissions | More than 46 dB (Exclude fc±62.5 kHz for AM mode) (Exclude fc±20.825 kHz for AM-N mode) |
| Frequency stability | ±0.4 kHz |
| Receiver | |
| Intermediate frequencies 1st 2nd |
46.35 MHz 450 kHz |
| Sensitivity (typ) COM (6 dB S/N) WX (12 dB SINAD) |
Less than 0 dBμ Less than –8 dBμ |
| Squelch sensitivity (at threshold) | Less than 0 dBμ (AM), Less than –5 dBμ (FM) |
| Audio output power | More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion) |
| Hum and noise | More than 35 dB (at 30% modulation) |
| Spurious response | More than 60 dB (AM), More than 30 dB (FM) |
| Audio output power | More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion) |
| Ext. speaker connector | 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω |
