BENDIXKING

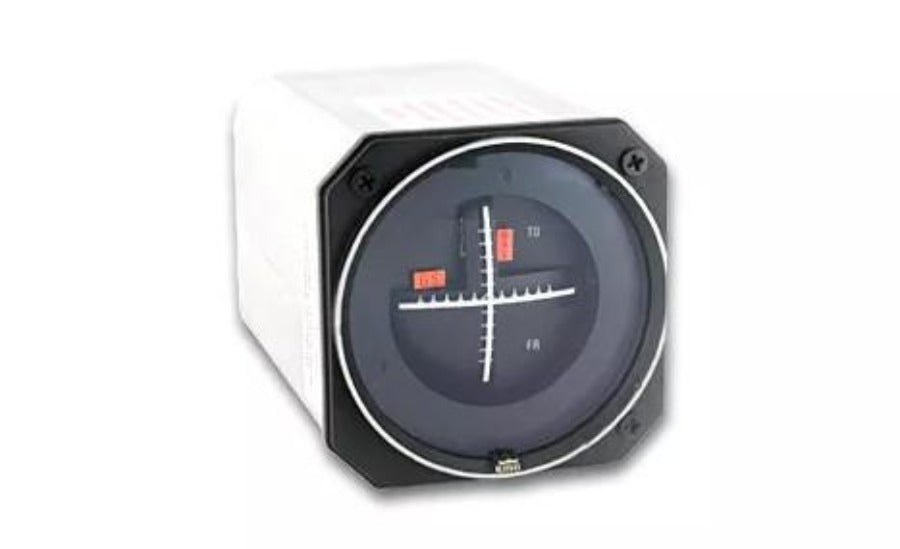

KI-209A VOR/LOC/Glideslope Indicator
Part No: KI-209A
Nav/GS Indicator
$7,595.00
/
Shipping calculated at checkout.
DESCRIPTION
Buy into affordable BendixKing reliability with the multi-tasking KI 209A VOR/LOC/glideslope indicator. It comes with a built-in VOR/LOC converter and GPS switching relays, allowing the pilot to switch back-and-forth easily between the two types of navigation. This function requires an external selector switch. Normally, VOR/LOC indicators with built converters cannot be used with GPS systems, as the converter blocks the GPS signal path. Use it along with an annunciator control unit to meet the FAA requirements for an instrument flight rules GPS installation. The KI 209A also has pendulum indicator needle, VOR/LOC and glideslope warning flags, a to-from indicator, and an omnibearing selector (OBS). It requires an external glideslope receiver for input.
Use the KI 209A with the KX 155/155A/170/175 NAV/COMMs, the KN 53 and KNR 630/631/632 navigational receivers, and the KLN 89/89B/94 GPS systems.
Comes internally lit with a plastic bezel and lens.
Specifications
| Specifications | |
|---|---|
| Power Required | 14/28 VDC @ 60 mA max |
| Lighting Power | 14/28 VDC |
| Weight | 1.20 lbs. (0.54 kg) |
| Width | 3.25 in. (8.26 cm) |
| Height | 3.25 in. (8.26 cm) |
| Length | 8.00 in. (20.32 cm) |
