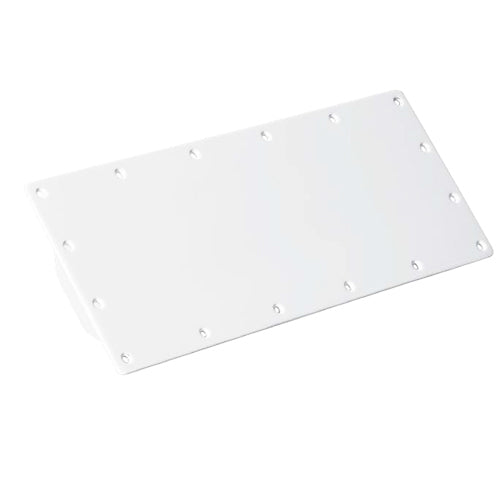

MARKER BEACON ANTENNA/Flush mount, OEM on Dassault

The CI-165-1 is a lightweight, flush mount antenna that provides dual marker beacon signal outputs at the antenna to eliminate the need for a separate marker beacon splitter. Housed in an aluminum cover with a glass laminate cover, internal components are potted in place insuring mechanical integrity.

Frequency:
75±0.15 MHz

VSWR:
1.5:1, maximum at 75 MHz
5.0:1, maximum at 75±0.15 MHz

Polarization:
horizontal

Isolation between ports:
20 dB, minimum

Impedance RF:
50Ω

Resistance DC:
DC grounded

Power RF:
receive only

Weight:
1 lb

Height:
flush mount

Construction:
Aluminum housing glass Lam. cover

Finish:
white poly. enamel/housing

connector:
BNC

Temperature:
-55°C to 85°C

Altitude:
45,000 ft

FAA TSA C35d
