R.C. ALLEN

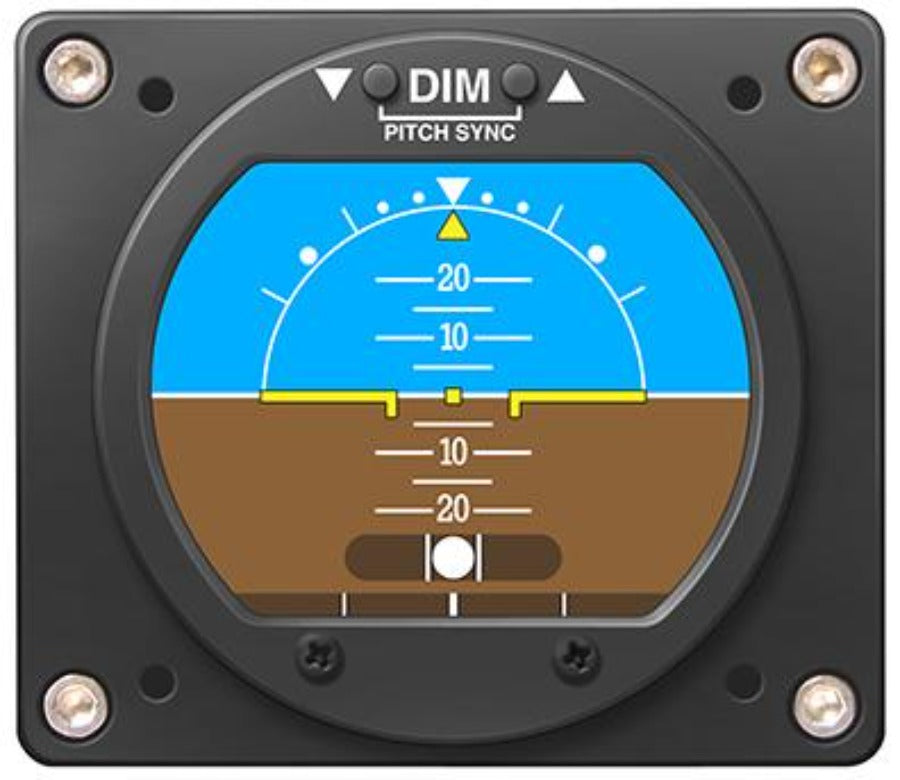

RCA2610-2 Digital Attitude Indicator

2" Bezel Digital Attitude Indicator

Catalog No:

Manufacturer: R.C. ALLEN

Questions about the product protection? See the Warranty FAQs.

Updated Version of the RCA2600
Sharper Anti-Aliased Display
New Duel Processor Board
Pitch Sync Option
360 Dgrees of Pitch and Roll
Multi-Volt Operation (9 TO 32 Volts)
Vibration Resistant
Fits Standard Panel Cutout
Totally Self-Contained
All Digital - No Moving Parts
3 and 2 Inch Models Available
Adjusted Brightness
Black Anodized Bezel
Lightweight 2”= 4.5oz. & 3”= 6.5oz.
FAA Certified

The RCA2610 is the updated version of the popular RCA2600 Electric Digital Attitude Indicator. The new version
has the same form, fit, and function as the original but has dual processors, improved screen resolution and updated
software. The optional Pitch Sync feature allows pilots to instantly synchronize the airplane symbol to the
horizon line when flying in a pitch up or pitch down attitude.

We also offer the RCA2610-G version that comes without the Pitch Sync feature which functions like the original
model with the brightness controls only. Order: RCA2610-3-G (3 inch) or RCA2610-2-G (2 inch).

The RCA2610 is designed to handle the high vibration environment found on helicopters and yet, their light weight
makes them perfect for soaring. This makes the RCA2610 the most versatile and dependable Digital AI on the
market today. With no moving parts to wear out, this instrument will provide years of reliable service - that’s why we
include a full two-year warranty!

All RCA2610 models can be ordered with an optional slip indicator (inclinometer) (Order P/N 444-0010-01) which
satisfies FAA AC 91-75 for even greater versatility.

The panel tilt angle can be set from 0 to 90 degrees in one degree increments.
The Pitch Sync feature does not compensate for incorrect panel tilt.
The panel tilt angle is set at the factory and must be specified at time of order.
 Non-standard angles may require special orders through your supplier.

OPERATING VOLTAGE...........................................................................................................................................9 to 32VDC
RUNNING CURRENT ........................................................................................................... (14VDC system) 0.20 AMPs MAX
                                                                                                                                                   (28VDC system) 0.18 AMPs MAX
CIRCUIT BREAKER SIZE ................................................................................................................................................. 2 AMP
SETTLING ERROR ......................................................................................................... 1º MAXIMUM IN ROLL AND PITCH
OPERATING TEMPERATURE RANGE................................................................................................................-30º TO +50º C
DIMENSIONS ..................................................................................................................................................... SEE FIGURE 1
FAA SPECIFICATION CONFORMANCE............................................................TSO-C4c, TSO-C113a, DO-160F & DO-178B
EASA SPECIFICATION CONFORMANCE .................................................................................. ETSO-C4c and ETSO-C113a
