DYNON AVIONICS
RV-6 Roll Servo & Mounting Kit
Part No: 101098-001
$915.00
/
Sold Out
Shipping calculated at checkout.
Pickup currently unavailable at 3650 Drane Field Rd
DESCRIPTION

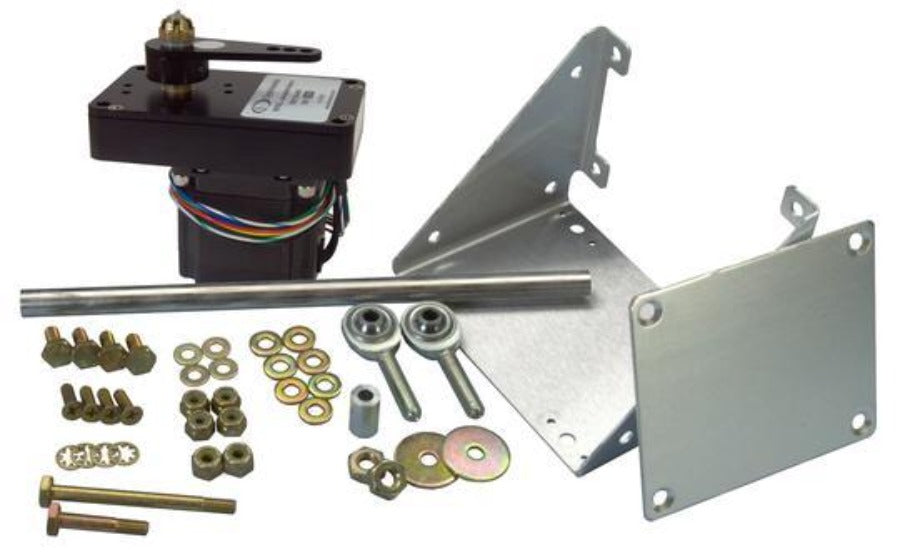

DYNON RV-6 Roll Servo + Mounting Kit Package
Dynon Avionics servos are dimensionally identical to other leading servos for drop-in upgradability. Behind the scenes, though, the SV line of servos are all-new. A lightweight aluminum case houses a stainless steel gear train to optimize weight while not sacrificing strength. The servo control arm is captured by a castellated nut and secured by a cotter pin, just like other critical interfaces in your aircraft. Each servo is managed by its own microprocessor, making the servo an active, smart extension of the autopilot. This simplifies the control-surface-to-servo calibration, and prevents the servo from driving itself endlessly like other servos can. As an ultimate mechanical failsafe, a simple and effective shear pin is employed to let you break the servo free of the aircraft control surface in an emergency.
