COMANT
DESCRIPTION

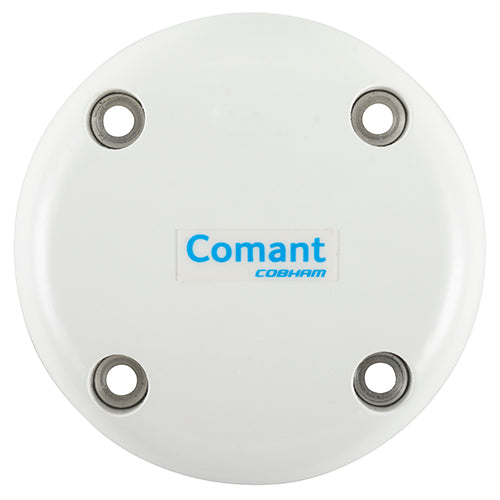

The CI 490-490 is a high performance communications antenna specifically designed for Iridium systems. Designed for most aircraft up to and including business jets. Receives essential communications services to and from areas where terrestrial communication are not available.
Features
- Iridium 1616-1626.5 MHz frequencies
- Single channel
- RHCP polarization
- Hemispherical radiation pattern
- Round footprint mounting
Specifications
Weight:
6.2 oz
Frequency:
Iridium TX/RX 1616-1626.5 MHz
VSWR:
1.5:1 maximum
Polarization:
RHCP
Radiation pattern:
Hemispherical
Impedance RF:
50Ω
Power handling TX:
6.5 watts average
Lightning protection:
6.5 watts average
Gain:
+3 dBic @ Zenith
Speed:
330 KIAS @ Sea Level
Certifications:
FAA TSO - C159a
RTCA Environmental - DO-160G
