DYNON AVIONICS
SkyView SE – Display Only
Part No: 102819-000
Shipping calculated at checkout.
DESCRIPTION
No matter what you call it, SE is Dynon's most affordable and intuitive SkyView experience ever.
SkyView SE displays are made specifically for VFR aircraft and pilots who want the most intuitive flight and engine instruments on the market. They feature simple and clear displays, with almost no menus to navigate in flight. SkyView SE systems omit mapping, synthetic vision, and IFR capabilities to offer an affordable SkyView-based entry-level system.
At the same time, SkyView SE retains modern, innovative Dynon EFIS capabilities like SkyView's revolutionary COM radio interface and 2-axis autopilot with simplified controls. For aircraft in the US market, SkyView SE systems equipped with Dynon's Mode S transponder and SV-GPS-2020 offer the lowest cost integrated glass panel system meeting FAA 2020 ADS-B Out requirements. SkyView SE displays can only connect to other SkyView SE displays.
*Displays connect to other modules and accessories to perform different avionics functions. For example, primary flight instruments require a SV-ADAHRS-200, engine monitoring functions require a SV-EMS-220 and related sensors. VFR GPS navigator features require a GPS position source, such as the SV-GPS-250 or SV-GPS-2020. NO harness included with display.
Features
SkyView Displays: Very bright, high-resolution screens driven by advanced graphics processors create highly visible and readable display. Even in direct sunlight!
SkyView Displays utilize TFT active matrix LCD screens and LED backlighting technology for increased life span, more uniform brightness, and reduced power consumption.
Buttons and Joysticks: The SkyView System is designed for ease of use while flying. The most used functions are accessed via two rotary/multi-direction Joysticks, for fast intuitive commands. Almost all other in flight commands, using the widely spaced buttons, are only two button presses away. None or more than three button presses.
Redundancy: If two displays are in the system, either one can act as the Primary Flight Display, Moving Map, and Engine Monitor. The unlikely loss of either display will not affect the functionality of the other.
System Battery Backup: A system backup battery will provide over an hour of backup power to a Display and Modules. Each Display requires its own Backup Battery for redundancy.
SkyView Displays utilize TFT active matrix LCD screens and LED backlighting technology for increased life span, more uniform brightness, and reduced power consumption.
Buttons and Joysticks: The SkyView System is designed for ease of use while flying. The most used functions are accessed via two rotary/multi-direction Joysticks, for fast intuitive commands. Almost all other in flight commands, using the widely spaced buttons, are only two button presses away. None or more than three button presses.
Redundancy: If two displays are in the system, either one can act as the Primary Flight Display, Moving Map, and Engine Monitor. The unlikely loss of either display will not affect the functionality of the other.
System Battery Backup: A system backup battery will provide over an hour of backup power to a Display and Modules. Each Display requires its own Backup Battery for redundancy.
Specifications

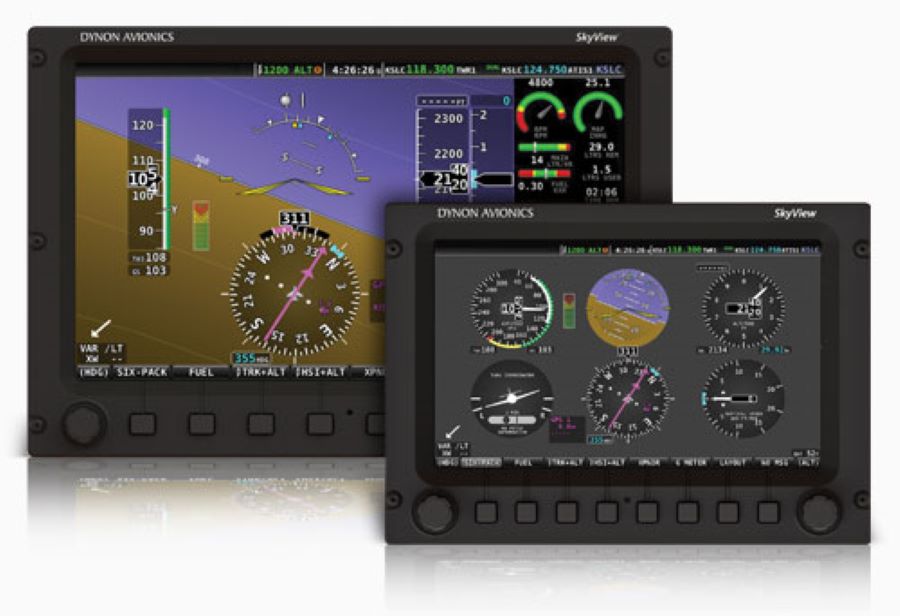

7" Display
- 7.636" Wide
- 5.512" High
- 2.31" Deep
- High Resolution Screen
- 480 Pixels High
- 800 Pixels Wide
- Over 1200 nits

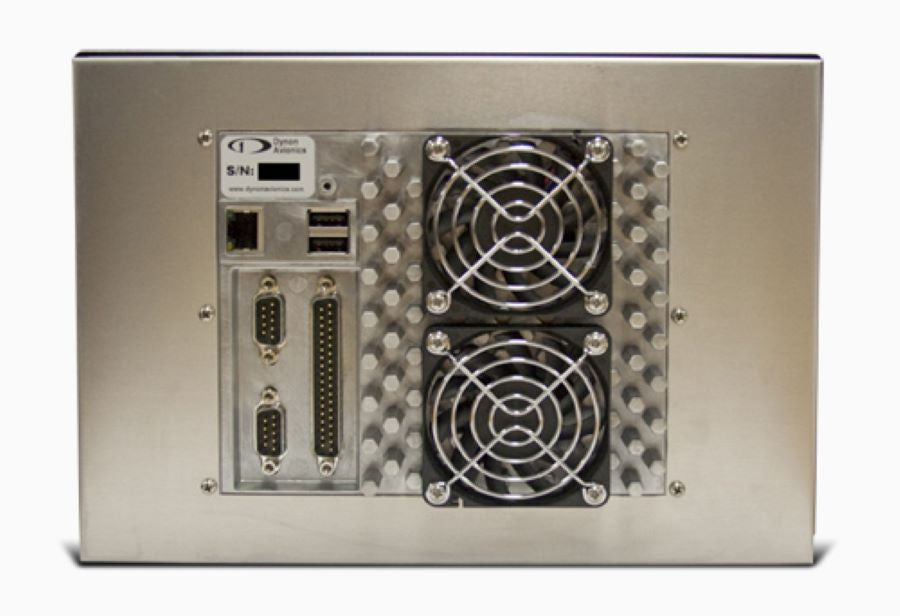

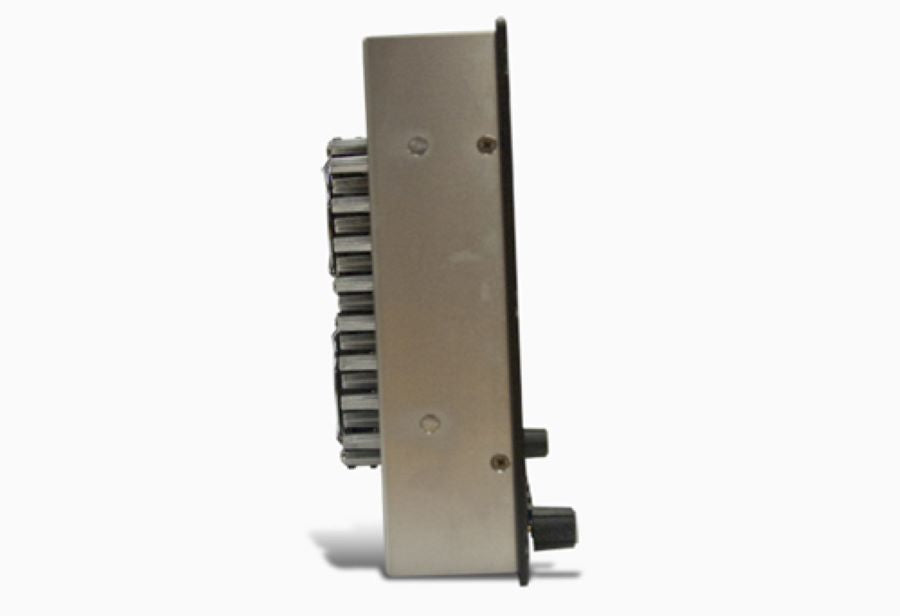

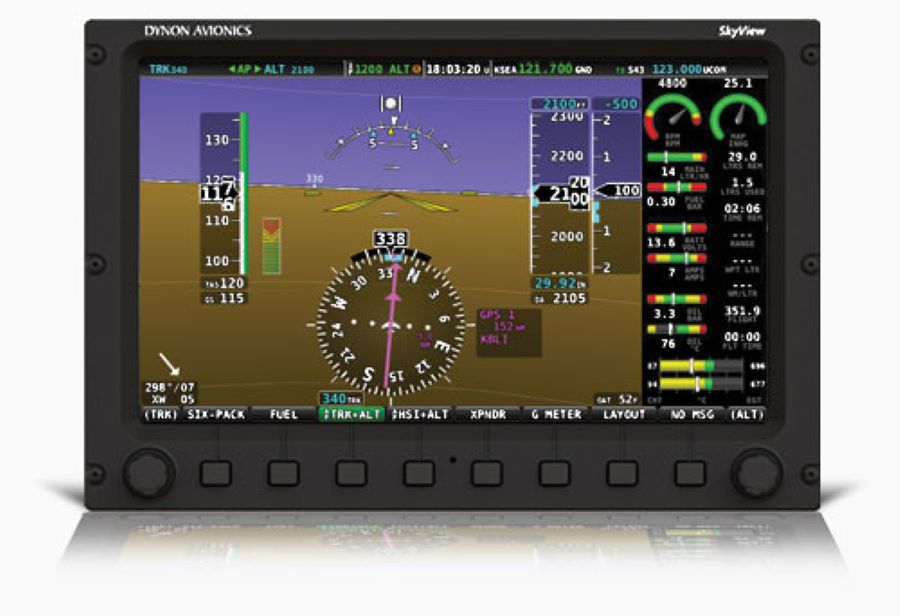

10" Display
- 10.32" Wide
- 7.064" High
- 2.33" Deep
- High Resolution Screen
- 600 Pixels High
- 1024Pixels Wide
- Over 1350 nits
