APPAREO

Stratus A&P Bundle W/ Stratus ESG

Catalog No:

Manufacturer: APPAREO

Questions about the product protection? See the Warranty FAQs.

Note: The Stratus A&P bundle includes a wiring harness and can be purchased over the counter for installation by an A&P.

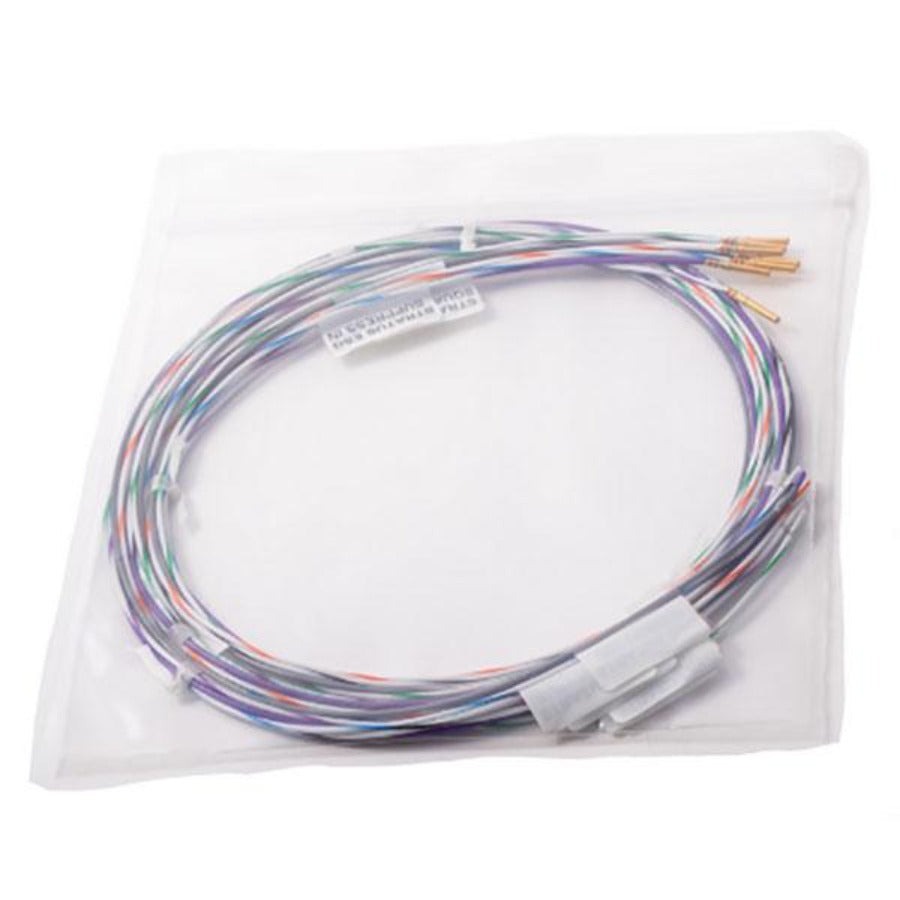

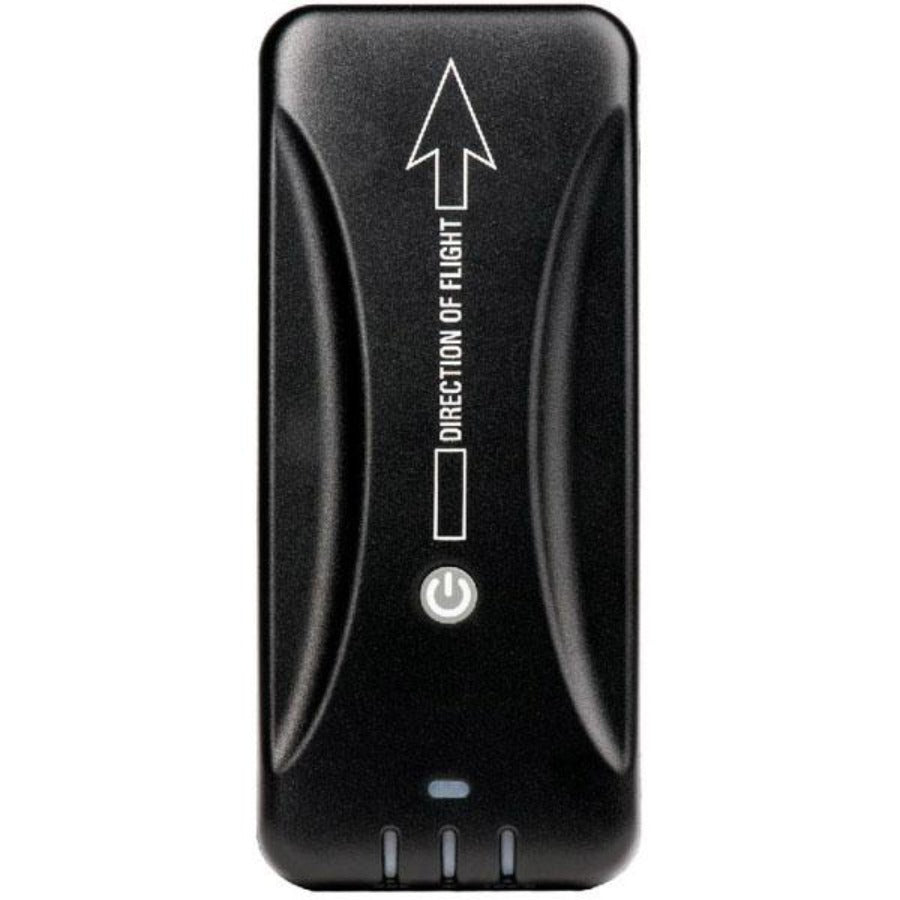

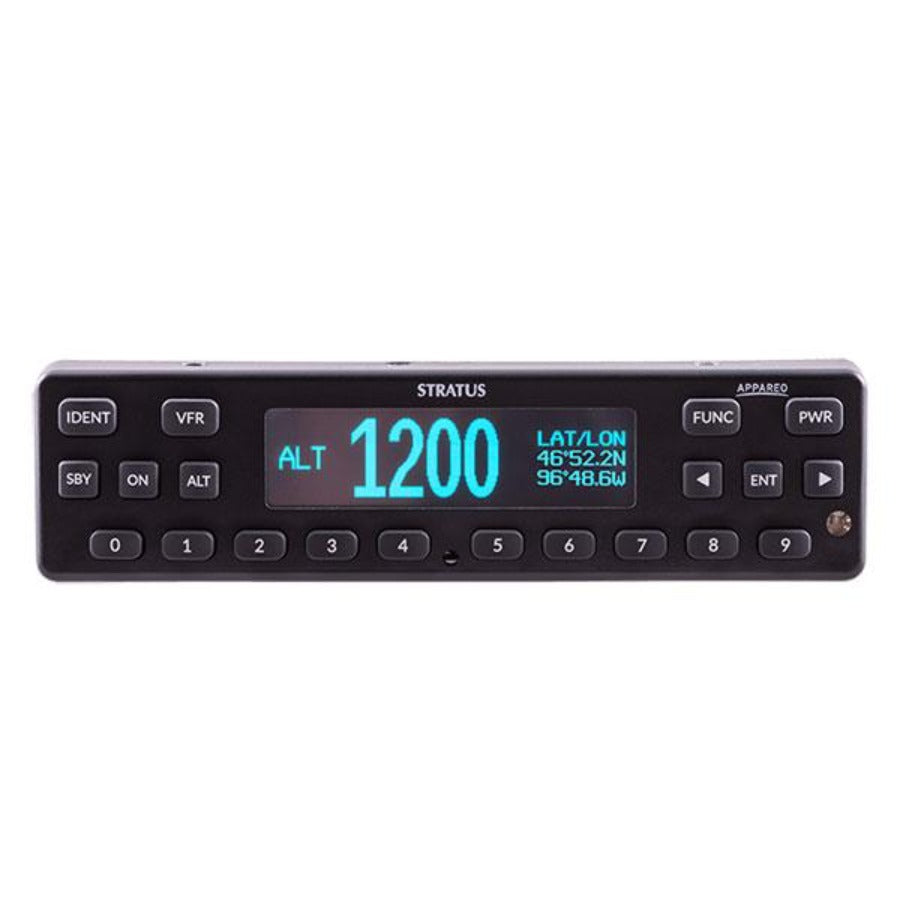

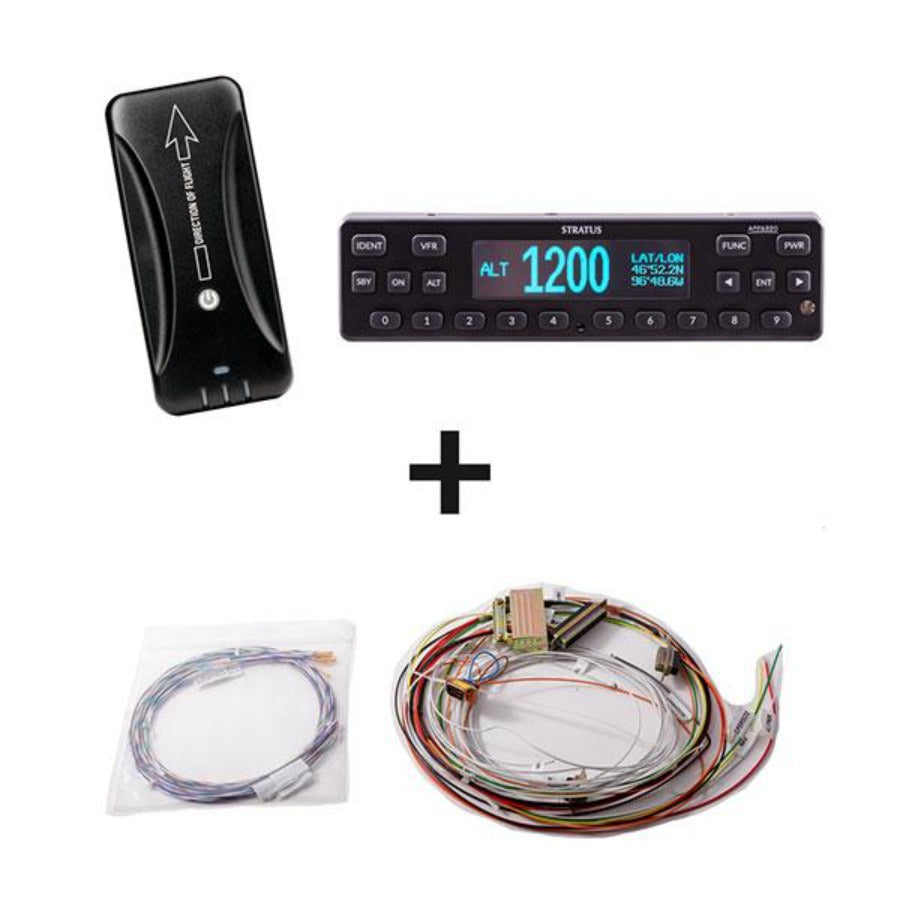

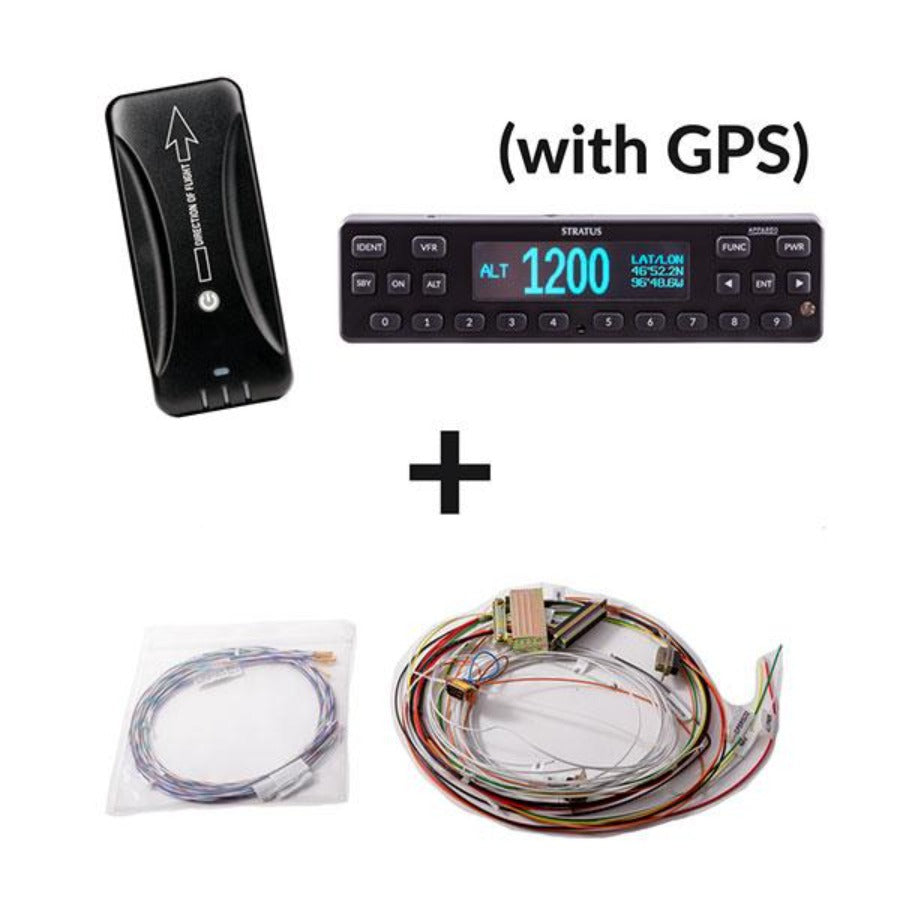

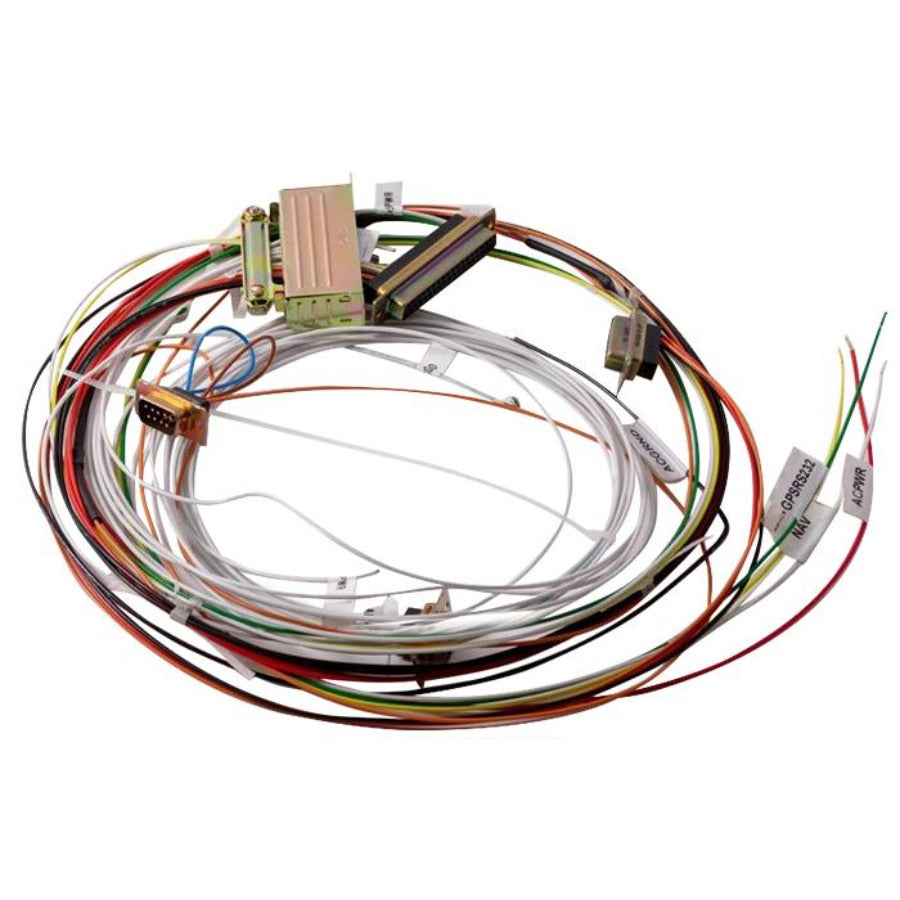

The Stratus A&P bundle includes: Stratus ESG Kit, Stratus 3i Kit, and Wiring Harness.

ALREADY HAVE A STRATUS RECEIVER?

Connect your Stratus with the optional interface kit for maximum reception. Your portable Stratus receives not only auxiliary power, but also its ADS-B and GPS signal from the transponder’s externally-mounted antennas.

  • 1090ES (Mode S extended squitter)

  • Built-in WAAS GPS

  • Meets global mandates for ADS-B Out

  • Push-button operation

  • Easy-to-use interface

  • Pressure altitude monitor

  • Bezel Height: 1.69 in. (43 mm)

  • Bezel Width: 6.38 in. (162 mm)

  • Depth: 10.75 in. (273 mm) front of panel to connector backshell

  • Weight: 3.29 lbs. (1.49 kg) including rack and connectors

  • Operating Temperature: -20°C to 55°C

  • Storage Temperature: -55°C to 85°C

  • Power Input: 9.0 to 36.0 VDC, 15 W typical

  • Cooling Input: No fan required

  • Environmental Compliance: DO-160G

  • Software Compliance: DO-178B Level C

  • Hardware Compliance: DO-254 Level C

  • Display: OLED

  • Transmitter Power: 310 W
