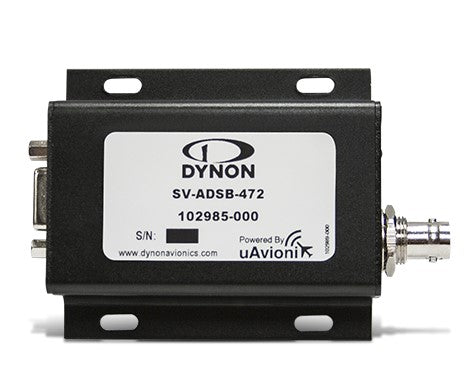

SV-ADSB-472

DYNON AVIONICS

SV-ADSB-472

Catalog No:

Manufacturer: DYNON AVIONICS

Questions about the product protection? See the Warranty FAQs.

Dynon’s New Dual Band ADS-B Traffic and Weather Receiver Now Available
The new dual band SV-ADSB-472 receives ADS-B traffic via 978 MHz (UAT) and 1090 MHz. In the US, it also receives free text and graphical weather from the FAA’s network of ADS-B ground stations. Unlike portable ADS-B receivers, SkyView and AF-5000 pilots get FULL ADS-B and radar traffic when the SV-ADSB-472 is paired with our Mode-S transponder and SV-GPS-2020. The remote mounted receiver utilizes an externally mounted antenna for superior ADS-B reception.




ADS-B Weather: Subscription-free weather displayed on SkyView, including NEXRAD radar, METARs and TAFS. Airport weather data can be displayed for nearest airports or for a specific airport identifier.


ADS-B Traffic: Receives ADS-B traffic targets with precise location, altitude, speed, and direction. Includes both traffic broadcast from other aircraft equipped with ADS-B UAT transmitters and data broadcast from ADS-B ground stations. For full FAA 2020 ADS-B mandate compliance, pair this receiver with Dynon’s SV-XPNDR-261 and SV-GPS-2020 modules for the industry’s most affordable ADS-B Out.

Antenna Information: The SV-ADSB-472 requires its own antenna; it cannot share the transponder's antenna. A UAT-specific antenna or a transponder antenna may be used with the SV-ADSB-472.

TFR Information: TFR NOTAMs are displayed graphically on the navigation map.

Specifications
The ADS-B antenna must be installed at least two-feet from the transponder antenna.

Dimensions: The SV-ADSB-472 is approximately 2.79" x 4.10" x .97" in outside dimensions.
Weight: 0.3 lb. (0.12 kg)
Power: 0.05A @ 12V DC
