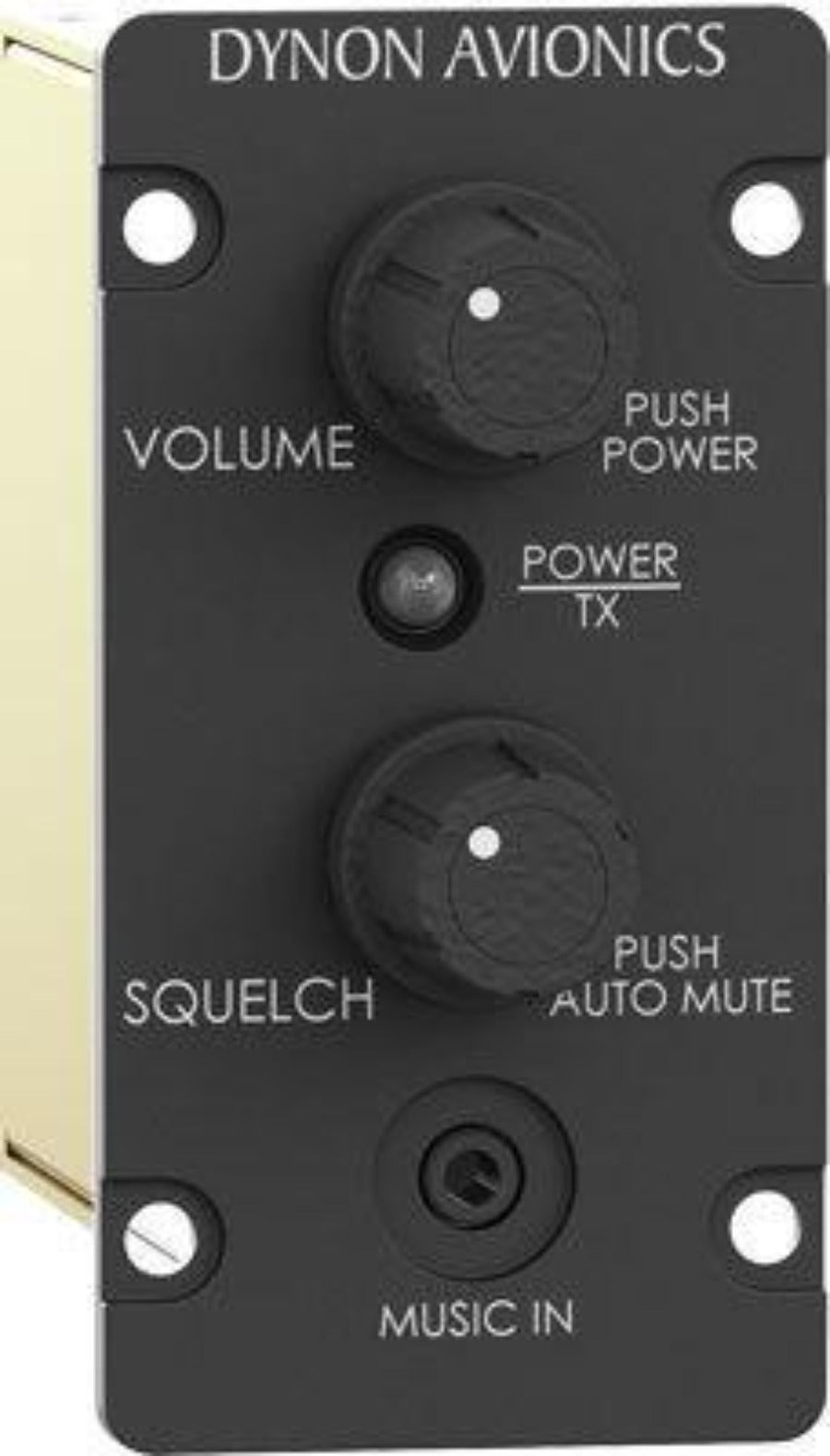

SV-INTERCOM-2S

SV-INTERCOM-2S

Part No:

Manufacturer: DYNON AVIONICS

Audio Panel Features at Half the Price
The new SV-INTERCOM-2S solves the problem of having to choose between an underfeatured intercom or an expensive audio panel. With ample inputs for EFIS systems, stereo music, and all the other technology in your panel, the SV-INTERCOM-2S has the features that your modern connected 2-place aircraft requires.

SkyView GPS Receiver: The SV-GPS-250 is a sensitive, WAAS enabled GPS receiver and antenna. The advantage of having the receiver packaged in one unit with the antenna, is that the output is a standard NMEA serial connection. A shielded antenna cable, with its inherent attenuation of signal and greater difficulty of routing, is not required to connect to the SkyView Display.

GPS Data: GPS latitude/longitude data is necessary for the SkyView to locate its position to display Synthetic Vision and the Moving Map. It is also necessary during calibration of the Remote Compass/Magnetometer, in order for SkyView to determine current location and the correct magnetic inclination.

Redundancy: An SV-GPS-250 is not necessary but highly recommended for the SkyView System. As a backup, NMEA standard GPS input can be utilized from a third party GPS receiver, but most GPS units output updates at 1/second, not 5/second like the SV-GPS-250 does. Another major advantage of the SV-GPS-250 is that it derives its power from a SkyView Display Backup Battery. So in the event of loss of ship's power the GPS will continue to be powered. Another advantage is the SV-GPS-250 is designed to be used with SkyView, and no setup is required.

Connections: Each SV-GPS-250 contains:
Four leads to attach to the SkyView Main Harness, including RX, TX, 8V, and Ground.

Not just for SkyView
The SV-INTERCOM-2S is for ALL experimental and light sport aircraft.

High-Fidelity Audio Circuitry
No more scratchy, garbled voices. Stereo music that sounds fantastic!

Dual Radio Support
The SV-INTERCOM-2S has dual radio outputs for the well-equipped panel. Fail-safe between the pilot headset and primary radio allows communication without intercom power.

Horizontal and Vertical faceplates are both included; headset jack kits also included.

Selectable Auto Mute turns down the music when a radio or other non-muting input (like an EFIS alert) receives audio. A single knob press toggles whether or not intercom speech also mutes music.Independent intercom Voice Activation reduces background noise; talking on one headset won’t open up squelch on the other. Radio broadcasts are also isolated so that only the person pressing the PTT is heard over the air.

SV-INTERCOM-2S Specifications

Muting Inputs 1x stereo, differential, noise-rejecting music input, with panel-mounted music jack override.
  1x mono input for additional muting source.
Non-muting Inputs 1x stereo, differential, noise-rejecting EFIS input.
  3x mono inputs for radios and other avionics.
One of these is fail-safed to the pilot headset.
Headsets 2x stereo headsets supported.
Radio Outputs 2x com radio outputs. External PTT selector required.
Dimensions 3.5” (89.71mm) x 1.80” (45.72mm) x 4.18” (106.17mm)
Weight 7.2 oz (204g)
Input Voltage 10-30V DC
Power Usage 0.1A at 14V
