Trig Avionics Limited

TA70 Certified GPS Antenna

Part No:

$372.00
Shipping calculated at checkout.
DESCRIPTION

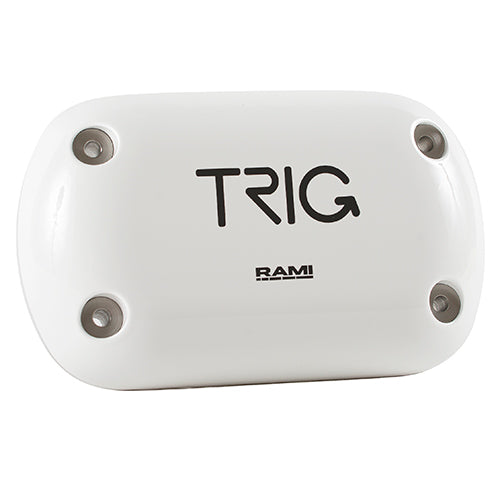

TA70 Certified GPS Antenna

The TA70 GPS antenna has been produced in conjunction with Trig Avionic's partner, RAMI, to ensure optimum performance with all Trig GPS position source products. The TA70 provides a fully certified TSO C190 antenna that is compatible with proven Trig transponders, and supported by the free ADS-B STC program. It is fully compliant with FAA 2020 ADS-B requirements and can be paired with either the TN70 or TN72 GPS receivers.

Features

Includes:

  • TA70 antenna
  • Mounting template
  • Installation guide

Features:

  • TSO C-190 certified antenna
  • Compliant for 2020 ADS-B Out
  • Optimized for use with Trig GPS units
  • Lightweight and simple to install
  • Superior gasket for a weather tight seal
  • Ideal as a retrofit antenna option
Specifications

Weight:
0.31 lb

Dimensions:
1.59 x 2.87 x 4.71 in

Type:
WAAS GPS Antenna

Supply voltage (DC):
4.5 VDC – 14.5 VDC

Typical consumption (at 14v):
40 mA (typical), 60 mA (maxium)

Certification:
TS0-C190

Compliance:
DO-301, DO-160G
