VA-1A Volts/Amps Instrument

VA-1A Volts/Amps Instrument

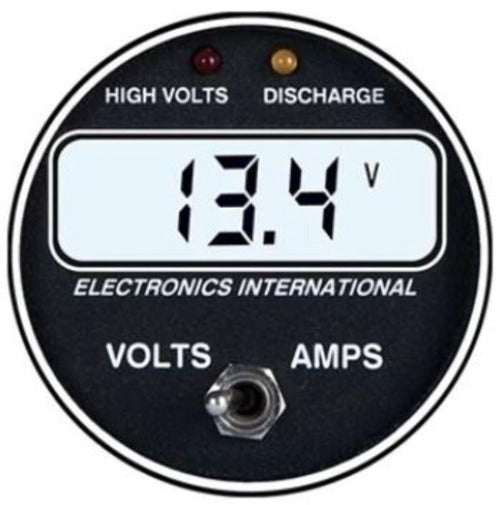

The VA-1A Volts/Amps Instrument is a Primary Replacement Volt/Amp Instrument with Internal Shunt.

Volts/Amps Instrument Features:

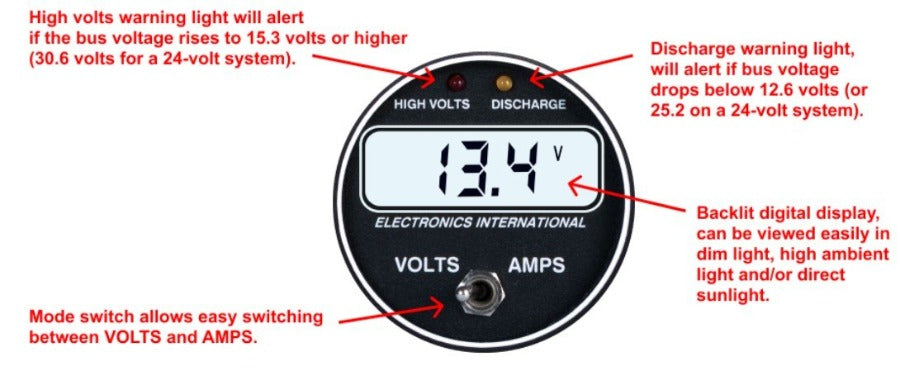

• Discharge and High Voltage Warning Lights
• 100 amp capability
• .1 volt and .1 amp Resolution
• Accuracy: 1%. 2 1/4"
• LCD display for excellent viewing in direct sunlight
• LCD is backlit for night operation
• Operates from 7.5 to 40 volts at .1 amps.
• Mounts in a standard 2 1/4" Hole. 3.65" depth

• Discharge and High Voltage Warning Lights
• 100 amp capability
• .1 volt and .1 amp Resolution
• Accuracy: 1%. 2 1/4"
• LCD display for excellent viewing in direct sunlight
• LCD is backlit for night operation
• Operates from 7.5 to 40 volts at .1 amps.
• Mounts in a standard 2 1/4" Hole. 3.65" depth

Included with all packages:

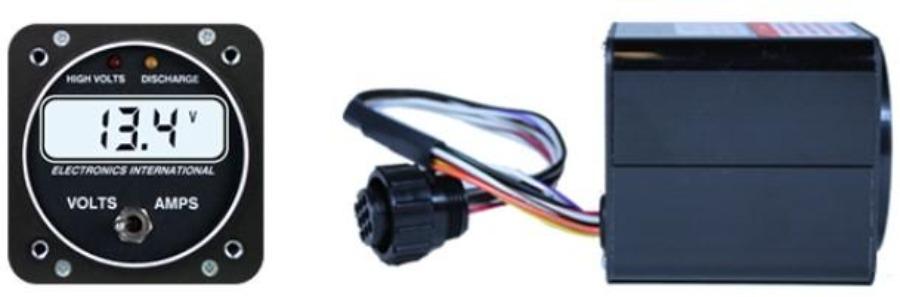

• VA-1A Instrument
• Wire Harness
• Installation and Operating Instructions
• STC & AML

Dimensions
Instrument: 2.50” x 2.50” x 3.65” Deep, 2 1/4” Flush Mount

Weight
11 oz (Instrument only)

Power Requirements
7.5 to 40 Volts, Typical: 0.3 amps @ 12 Volts

Display
Backlit LCD, viewable in Direct and Indirect Sunlight

Certifications
FAA STC’d, PMA’d
