4000B-30

Vacuum Directional Gyro

Part No:

Manufacturer: SIGMA-TEK

Vacuum Directional Gyro

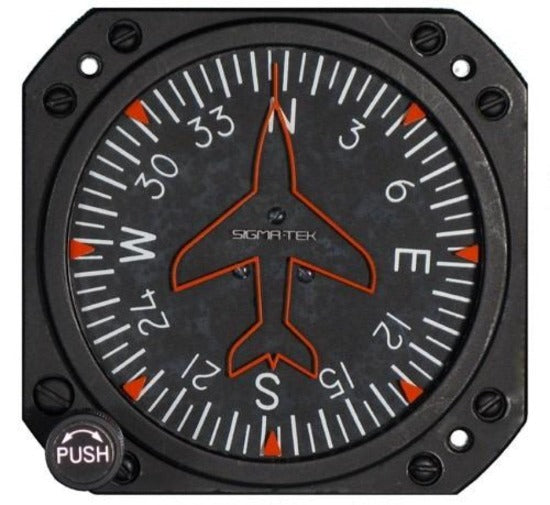

The 4000B is our standard air-driven directional gyro. As the aircraft turns left or right, gears on the sensing unit and dial shaft translate this rotation into rotation of the instrument’s vertical dial. Left turns produce clockwise dial rotation and right turns produce counter-clockwise rotation. The gyro is controlled by a heading selector knob located on the lower left of the instrument. Pressing and turning the knob first disengages the dial shaft and then resets the dial to a new heading, which results in a new course indication. Releasing the selector knob re-engages the dial shaft. The on-course position of the pointer is always at the top of the azimuth circle (0° on the dial with the aircraft headed north).

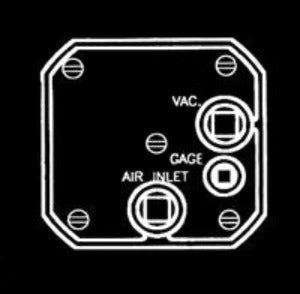

Height:

3.25"

Width:

3.38"

Depth:

6.68" (max)

Weight:

2.4 lbs. (max)

Markings:

Matte white

Finish:

Dull black


Notes:
  1. Characters, logo, and graduation marks are white per STI 8A015-002 on black background 8A013-001.
  2. Airplane and index markers are silk-screened on inside surface of glass.
  3. Color is Day-Glo ARC yellow (ie: orange).
  4. FAA approved as conforming to TSO C5c requirements.

Environmental Characteristics

Temperature: -30° to 50° C
Vibration:
- CPS: 5 to 50
- Maximum Double Amplitude: 0.020 in.
- Maximum Acceleration: 1.5 G's
Humidity: 0% to 95% at 32° C
Altitude: 0 to 40,000 ft.
